Blade Fuses and Holders
Filter
-
-
-
30a Individual Fuse Holder
In Stock
FH420 BLADE FUSE HOLDER 30AMP
- Individual blade fuse holder
- Rating 30amps
- Cable colour orange
- Cable conductor cross section 3.3mm2
£2.85 Each
-
-
7a Blade Fuse
In Stock
FB07 BLADE FUSE 19MM 7.5AMP
- Standard fit blade fuse
- 7 Amp
- Colour Brown
£0.10 Each
-
Add a circuit blade fuse holder
In Stock
FH450 ADD A CIRCUIT BLADE FUSE HOLDER
- For use to provide and additional fused feed in a standard blade fuse box
£4.50 Each
-
Blue Sea Systems 5045 IP66 Compact Fuse Block 4 Circuit
In Stock
BLUE SEA ST BLADE COMPACT FUSE BLOCK 4 CIRCUITS 5045
- Provides surface mount protection for ATO/ATC fuses
- Single side entry wiring
- Ignition protected for use in a gasoline engine compartment
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Maximum operating voltage 32V DC
- Maximum operating Amperage 30 Amp per circuit
- Maximum operating Amperage 100 Amp per block
- 4 circuits
£27.99 Each
-
Blue Sea Systems 5046 IP66 Compact Fuse Block 8 Circuit
In Stock
Provides surface mount circuit protection for ATO?/ATC? Fuses in a compact footprint.
- Ignition protected when cover is secure ?meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Single side design allows wire entry from one side to minimize footprint
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes 8 write-on circuit labels
- Fuses sold separately
£39.99 Each

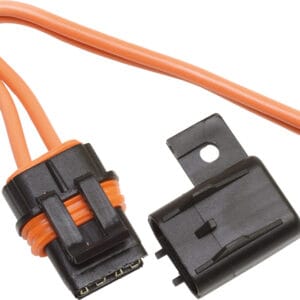

Blue Sea Systems 5065 Waterproof In-Line ATO/ATC/Standard Blade Fuse holder
In Stock
The Blue Sea Systems 5065 waterproof in-line fuse holder for standard blade (ATO/ATC) fuses enables circuit protection in marine and other harsh environments. Ideal for use in engine compartments or outside applications, the silicone seal prevents moisture ingress and the lid has a fixing hole to allow the holder to be mounted. Fitted with 3.0mm² … Continued
£8.49
-
-
FBB4L 4 way LED blade fuse box
In Stock
FBB4L 4 WAY BLADE FUSE BOX LED
- LED Blade fuse box with a transparent cover
- 1 x 5mm power input stud that feeds each of the blade fuses
- Each fuse has a 6.3mm male blade terminal and a red LED indicator light that glows when the fuse has blown
- The boxes can be fixed to a firm surface using mounting holes
- 4 fuses
- Male blade terminals fitted (mm) 4 x 6.3
- Dimension H x W x D (mm) 35 x 45 x 85
£10.50 Each
-
FBB4T 4 way blade fuse holder
In Stock
FBB4T 4 WAY BLADE FUSE HOLDER
- Blade fuse box with transparent cover
- Cable connections made using 6.3mm male blade terminals fitted on the sides of the fuse box
- 4 fuses
- Male blade terminals fitted (mm) 8 x 6.3
- Dimensions H x W x D (mm) 36 x 80 x 29
£4.60 Each
-
FBB6L 6 way LED blade fuse box
In Stock
FBB6L 6 WAY BLADE FUSE BOX LED
- LED Blade fuse box with a transparent cover
- 1 x 5mm power input stud that feeds each of the blade fuses
- Each fuse has a 6.3mm male blade terminal and a red LED indicator light that glows when the fuse has blown
- The boxes can be fixed to a firm surface using mounting holes
- 6 fuses
- Male blade terminals fitted (mm) 6 x 6.3
- Dimension H x W x D (mm) 35 x 65 x 85
£14.00 Each
