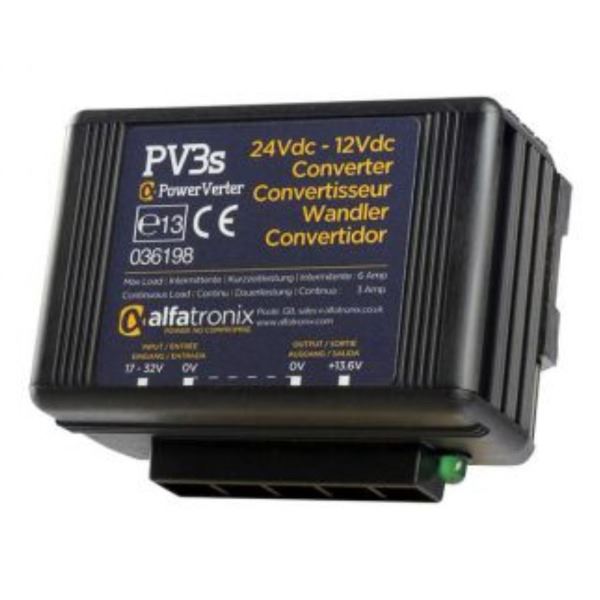

Alfatronix PV3S 24VDC to 12VDC Converter Non-Isolated (Common Earth) – 3A Continuous 6A Intermittent

A convenient way to operate mass produced 12Vdc equipment such as cell phones, in car entertainment, professional communication and telematics equipment, refrigerators, televisions etc. from the 24Vdc mobile electrical systems found on diesel engined vehicles and vessels.There are 11 products in the PowerVerter range from 3A to 50A in isolated or common earth configurations. They have been optimised for high volume 24Vdc to 12Vdc applications such as on heavy goods vehicles, coaches, buses, construction, forestry and agricultural vehicles, commercial and leisure marine vessels.All units consume an off load current of less than 15mA, which is probably less than the self discharge current of the vehicle’s battery. In most cases this can be ignored, speeding the installation by removing the need to fit a remote switch.All products fit onto a ‘Click ‘n’ Fit mounting clip which is fixed in three points allowing it to be mounted on uneven surfaces. It is easy to fit the clip into awkward places and then simply click the unit into position. A red LED indicates when there is output from the converter.

Features:

• Non-Isolated (common earth) 24VDC to 12VDC Converter
• A convenient way to operate 12VDC equipment from 24Vdc mobile electrical systems
• 24VDC Input
• 12VDC Output
• 3A Continuous Output Current
• 6A Intermittent Output Current

PV3S CONVERTER 24-12V 3/6A

• Alfatronix Voltage converter 24Vdc to 12Vdc
• 3A/6A non isolated
• IP53 rated
• Fits into click and fix mounting clip
• Green Led indicates when there is an output from the converter
• Dimensions 67 x 87 x 50mm
