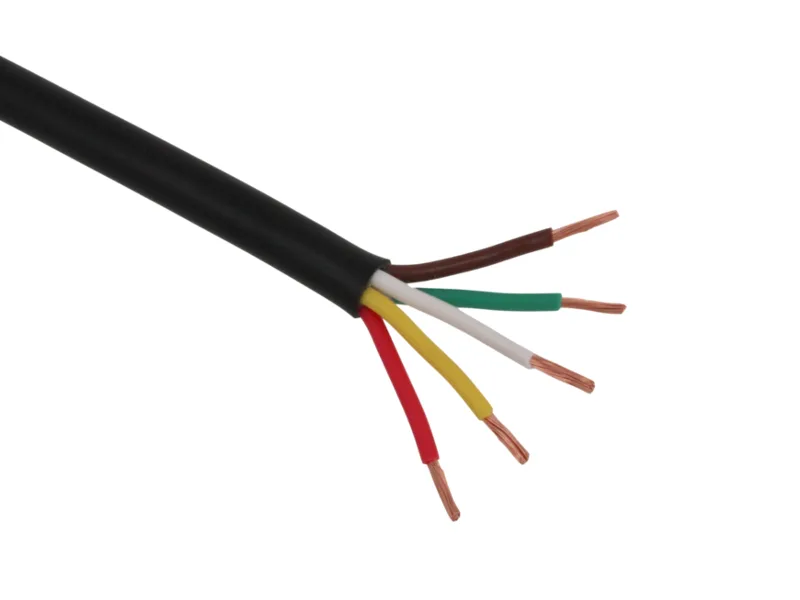

AMC 1.0mm 5 core Thin Wall Round cable TW05/01

AMC multi-core cable consisting of 5 cores of thin wall cable with a PVC sheath. Suitable for low voltage auto and marine applications.

Thin wall cable is used as standard by OEM manufacturers throughout Europe due to its high performance characteristics.

• Cores manufactured to: ISO 6722:2006 (Class B) 105°C
• Voltage rating: Suitable for 12V & 24V systems (60V max.)
• Nominal current rating: 5×16.5A
• No./size of conductors: 5×32/0.20mm
• Conductor cross section: 5×1.0mm²
• Maximum overall cable diameter: 6.3mm
• Conductor material: Plain copper
• Core insulation material: PVC (hard grade)
• Core insulation colours: Brown, Green, Red, White, Yellow
• Sheath insulation material: PVC
• Sheath insulation colour: Black
• Working temperature: -15 to +70°C
