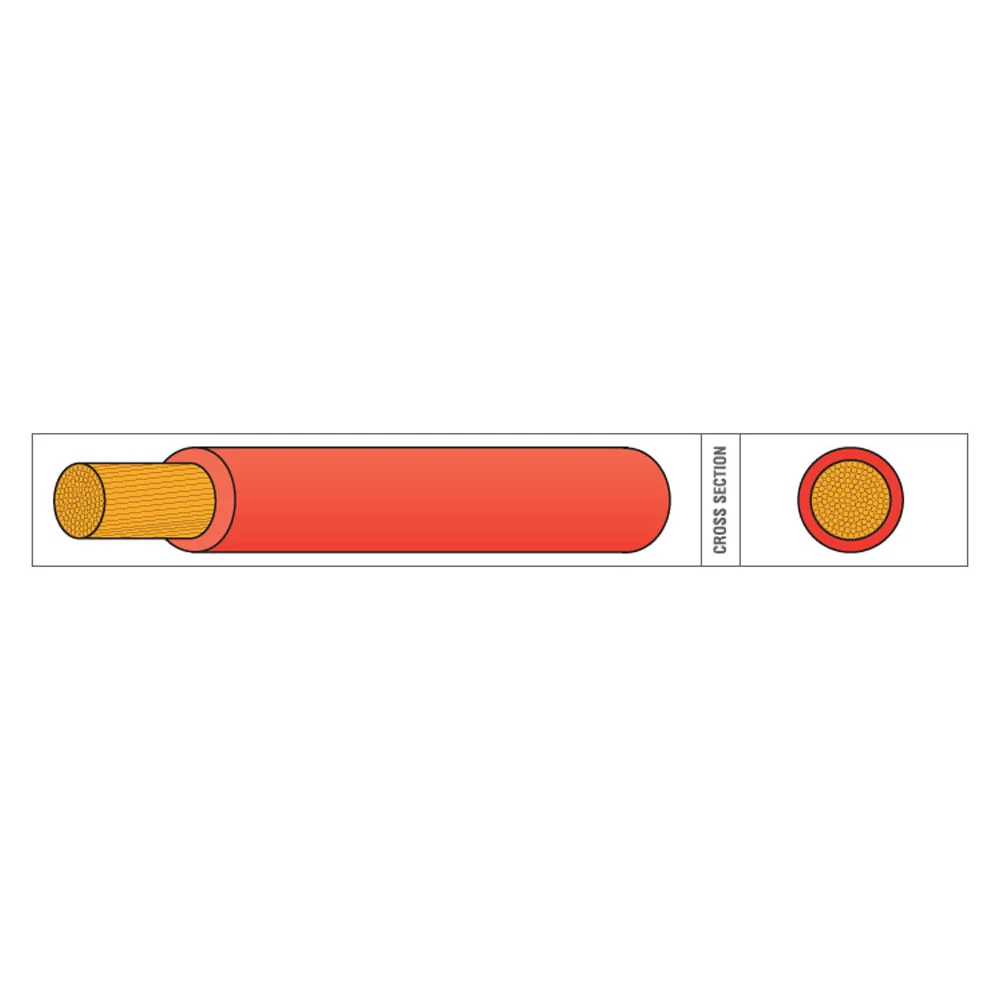

AMC Extra Flexible PVC Battery Cable in Red – 35mm² 240A
SKU: 026677
In Stock
This robust, flexible battery/welding cable features plain copper conductors and PVC insulation, designed to perform in tough environments. With a 35mm² conductor cross-section, 240A current rating, and resistance to petrol, oils, and acids, it operates between -30°C to +70°C. Supplied in red, to your preferred length.
£9.49
ex VAT £7.91
-
Description
Single insulated battery/welding cable, produced for using in tough working environments, but maintaining great flexibility for easier use. Plain copper conductors, PVC insulated -30°C to 70°C. Cable is resistant to petrol, lubricating oils as well as diluted acids. Conductor cross section 35mm². Maximum overall diameter 11.8mm. Maximum overall diameter 11.8mm. Supplied in Red, to the length of your choice. We can also supply all of your Lug, Battery , Conduit and Heat Shrink options for your convenience. All cables manufactured in the UK.
- Nominal current rating: 240A
- No./size of conductors: 451/0.30mm
- Conductor cross section: 35mm²
- Maximum overall cable diameter: 11.8mm
- Resistance per m at 20°C: 0.00056 Ω
- Conductor material: Plain copper
- Insulation material: PVC
- Working temperature range: -30°C to +70°C
- Chemical resistance: Petrol, lubricating oils and acids
-
