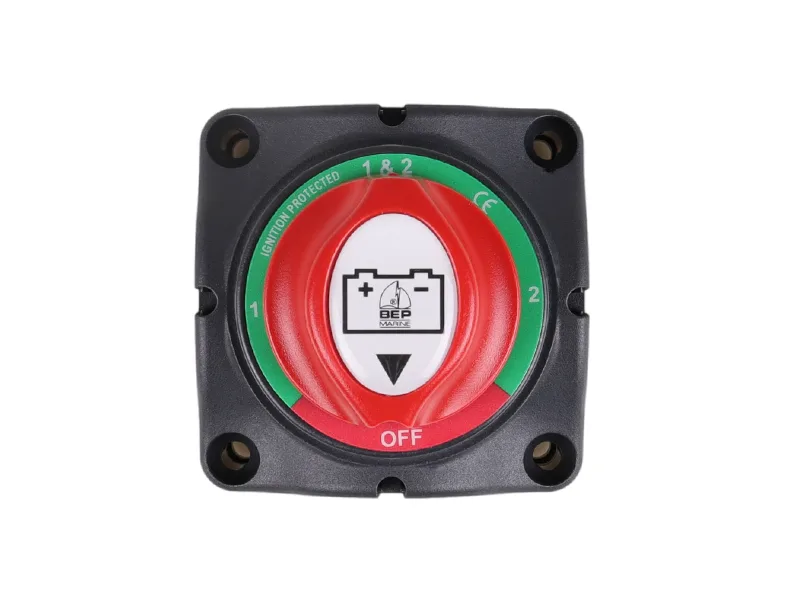

BEP 701S BEP 701S Contour Mini Battery Selector/Changeover Switch – 200A Cont., 48V Max 1-2-Both-Off

This 701S Contour Mini is a compact, robust battery selector switch from BEP that can be used standalone, or locked together with other BEP switches using the patented Contour Locking System. It is used to changeover the loads and charging sources between 2 batteries or to combine them and the switch selector positions are OFF/ 1 / 1+2 / 2. To provide flexible installation options, the switch can be recess-mounted or surface mounted.

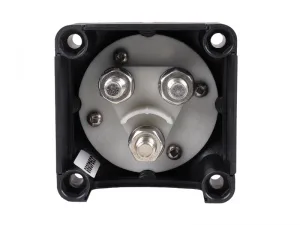

The removable back cover protects the exposed terminals which prevents damage and accidental shorting and meets ABYC specifications. Removable side panels in the body of the unit allow for various cable entry options and this switch is ignition protected for safe use in engine compartments and spaces containing fuel.

BEP tests its battery switches to UL 1107 for Continuous (1 hour), Intermittent (5 minutes) and Cranking (engine starting – 10 seconds) operation. The test is to determine the maximum current the switch can handle for the stated time without the rear terminals exceeding 100°C above the ambient temperature. The continuous and intermittent ratings are tested at 110 percent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

Features

• For use in battery systems up to 48V DC
• Recessed or surface mounting
• 200A continuous rating
• 1000A cranking rating
• Contour locking system
• Self-cleaning sliding contacts
• Ignition protected
• Meets ABYC standards

• Current rating – continuous: 200A max.
• Current rating – intermittent: 300A
• Current rating – cranking: 1000A (10 sec max.)
• Voltage rating: 50V DC max.
• Switch operation: OFF / 1 / 1+2 / 2 (with removable actuator)
• Terminal material: Tin-plated copper
• Corrosion-resistant fixings: Yes
• Terminal size: M8
• Ignition protected: Yes
• Overall dimensions: 75 (L) x 69 (W) x 69 (H) mm
• Overall weight: 0.22kg
