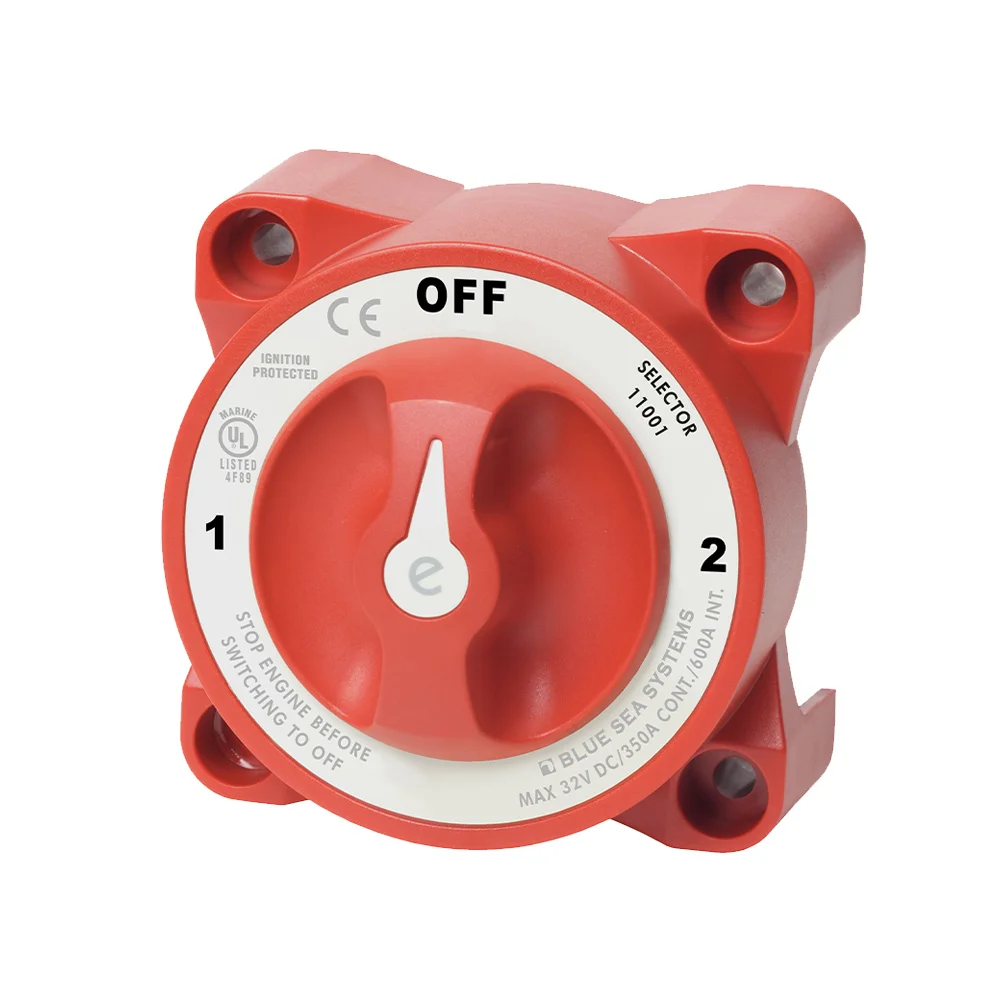

Blue Sea 11001-BSS e-Series Selector 3 Position Battery Switch with AFD
SKU: 001660
In Stock
The Bluesea 3-position battery switch with AFD offers 350A continuous, 1200A cranking, and ignition protection for gasoline boats. It supports 32V DC, features surface or rear panel mounting, and tinned copper studs.
£39.00
ex VAT £32.50
-
Description
Switches a single battery to a single load group
- Includes AFD (Alternator Field Disconnect)
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Bluesea Systems 3 switch position battery switch. Switches a single battery to a single load group. The switch includes AFDC (alternator field disconnect) Is ignition protected, meaning it is safe for installation on gasoline powered boats. The case design allows for surface or rear panel mounting. Has 3 switch positions and is supplied in Red. The maximum voltage is 32v DC. Its continuous rating is 350A, and an intermittent rating of 600A (5 minutes)
Dimensioned Drawing
InstructionsSpecifications Switch Type Selector 3 Position Colour Red Switch Positions 3 Battery Combine No Alternator Field Disconnect Yes Maximum Voltage 32V DC Terminal Stud Torque 140 in-lb (15.82 Nm) Continuous Rating 350A Intermittent Rating 600A (5 min) Cranking Rating 30 sec 1200A Battery Inputs 2 Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm) Cable Size to Meet Ratings 4/0 AWG (120mm²) Mounting Holes Accept 1/4″ (M6) Screw Stud Material Tinned Copper Terminal Stud Size 3/8″ – 16 (M10) Weight 1.15lb (0.52 kg) Weight 1.30lb (0.59 kg) -
