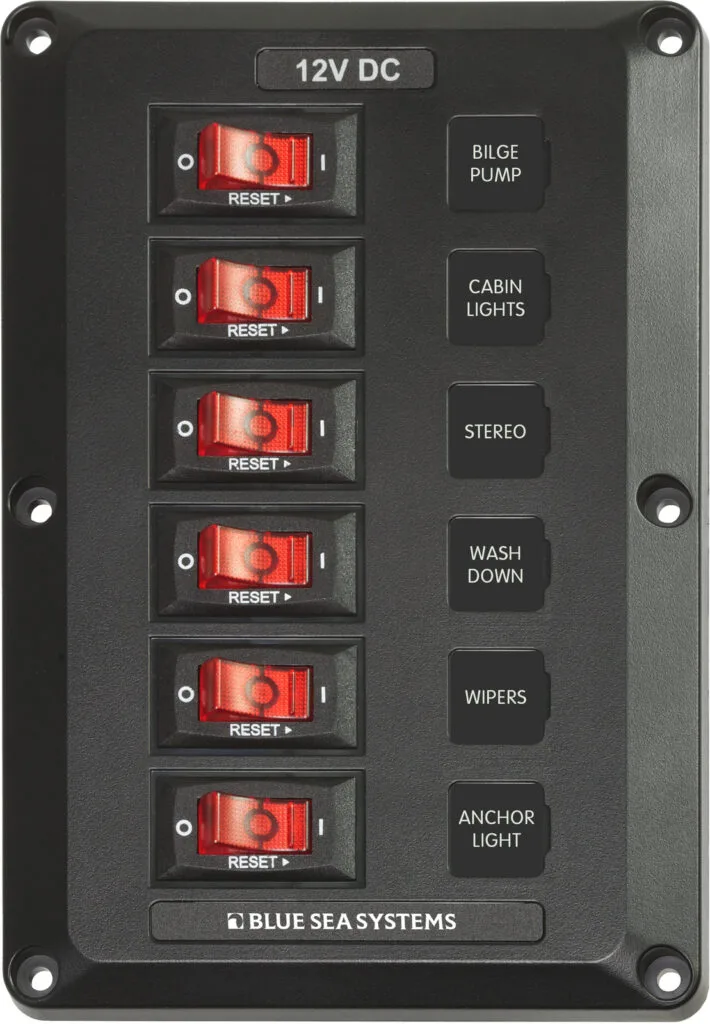

Blue Sea 4352-BSS 6 Position CB Below Deck Panel 12V
SKU: 002711
In Stock
Blue Sea Below Deck Circuit Breaker Panels feature durable, UV-resistant construction, easy installation, illuminated ON indicators, 6 x 15AMP, and simple wiring with quick-connect BUS and labels.
£40.99
ex VAT £34.16
-
Description
The Blue Sea 4352-BSS 6 Position CB Below Deck Panel 12V is a high-quality electrical panel designed for marine and RV applications.
DURABLE
Moulded panel frame will stand up to UV and salt air
EASY
Low profile makes it easy to install in tight spaces
SIMPLE
Fast-on circuit breaker connectors make it quick to wire
CONVENIENT
Red “ON” indicating LEDs for safe operation in low light conditions- 6 Carling Technologies™ 15A circuit breakers
- Illuminated ON indication
- Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
- Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
- Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
- Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
- Stainless steel #6 x 5/8″ mounting screws included
-
