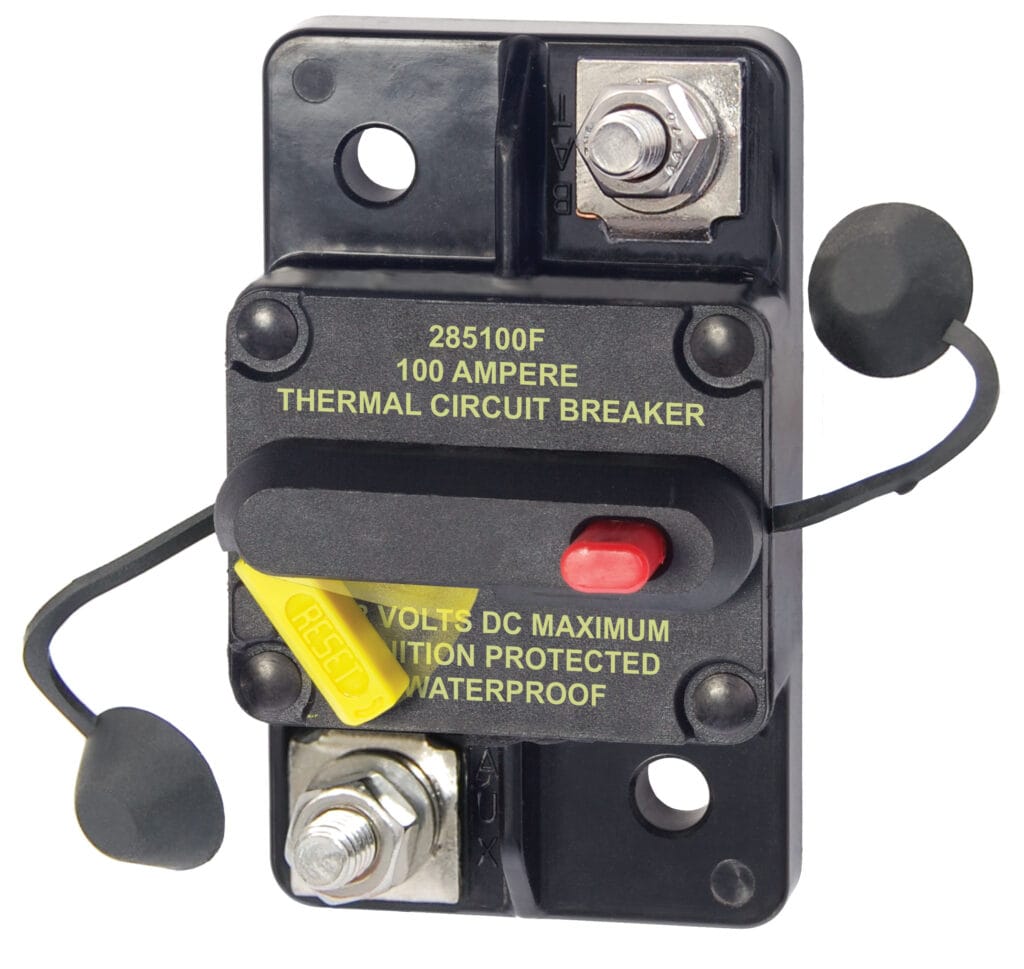

Blue Sea 7187-BSS 285 Series Breaker Surface 100A

The Blue Sea Systems 7187-BSS 285 Series Circuit Breaker Surface Mount (100A) is a surface-mount breaker designed for high-current protection in marine, RV, and vehicle applications. Rated for 100 amps, it combines reliable circuit protection with ease of use.

Key Features:

• Current Rating: 100A
• Voltage: 48V DC
• Interrupt Capacity: 3000A, designed to handle large fault currents.
• Mounting Type: Surface mount, ideal for installations where front-panel mounting is not possible.
• IP67 Waterproof Rating: Fully waterproof, ensuring protection in harsh, wet environments.
• Ignition Protected: Safe for use around fuels and flammable materials, preventing sparks.
• Manual Trip and Reset: Allows for manual circuit isolation or restoration.
• Trip-Free Design: Prevents the breaker from staying “ON” after a trip, ensuring safety.
• Cable Connections: M6 studs for secure rear cable connections.
• Applications: Suitable for medium to high-current circuits in boats, RVs, and vehicles.

This breaker offers effective protection and switching for high-current circuits, providing both safety and durability in demanding environments.

Amperage	100A
Maximum Voltage	48V DC
Mounting	Surface Mount
Circuit Breaker Type	Thermally responsive Bi-metal blade
Terminal Stud	M6 (accepts 1/4″ Ring Terminal)
Terminal Stud Torque	50 in-lb (5.65 Nm)
Interrupt Capacity	3000A @ 48V
Minimum Operating Temperature	-40° C
Maximum Operating Temperature	85° C
Circuit Breaker Class	Type III – switchable/manual reset – trip free
Weight	0.50lb (0.23 kg)
