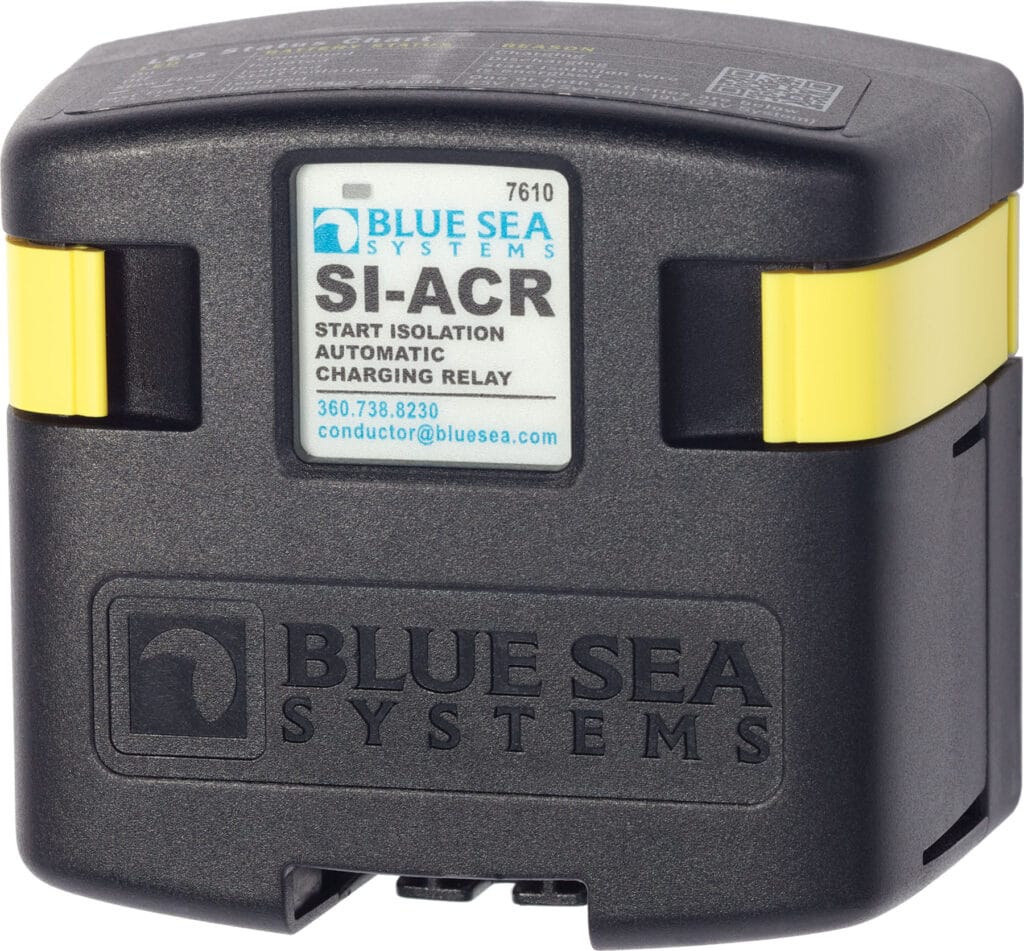

Blue Sea 7610 Automatic Charging Relay 12/24V DC 120A

Automatically combines batteries during charging, isolates batteries when discharging and when starting engines
Features

• Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
• Designed for 12 or 24 volt systems
• 12/24 volt auto ranging voltage input
• Hermetically sealed contacts/vaporproof
• Ignition protected—safe for installation aboard gasoline powered boats
• Supports high-output alternators up to 120 Amperes
• Dual sensing

Optional Features

• Start Isolation allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes
• Remote LED remotely indicates ACR states – requires optional LED

Specifications
Nominal Voltage	12V DC 24V DC
Start Isolation	Yes
Amperage Operating Current	175mA (combined) 15mA (open)
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	120A
Intermittent Rating	210A (5 min)
Cable Size to Meet Ratings	1/0 AWG
Stud Material	Tinned Copper
Terminal Ring Diameter Clearance	1.12in (28.45 mm)
Terminal Stud Length	0.875in (22.23 mm)
Terminal Stud Size	3/8″ – 16 (M10)
