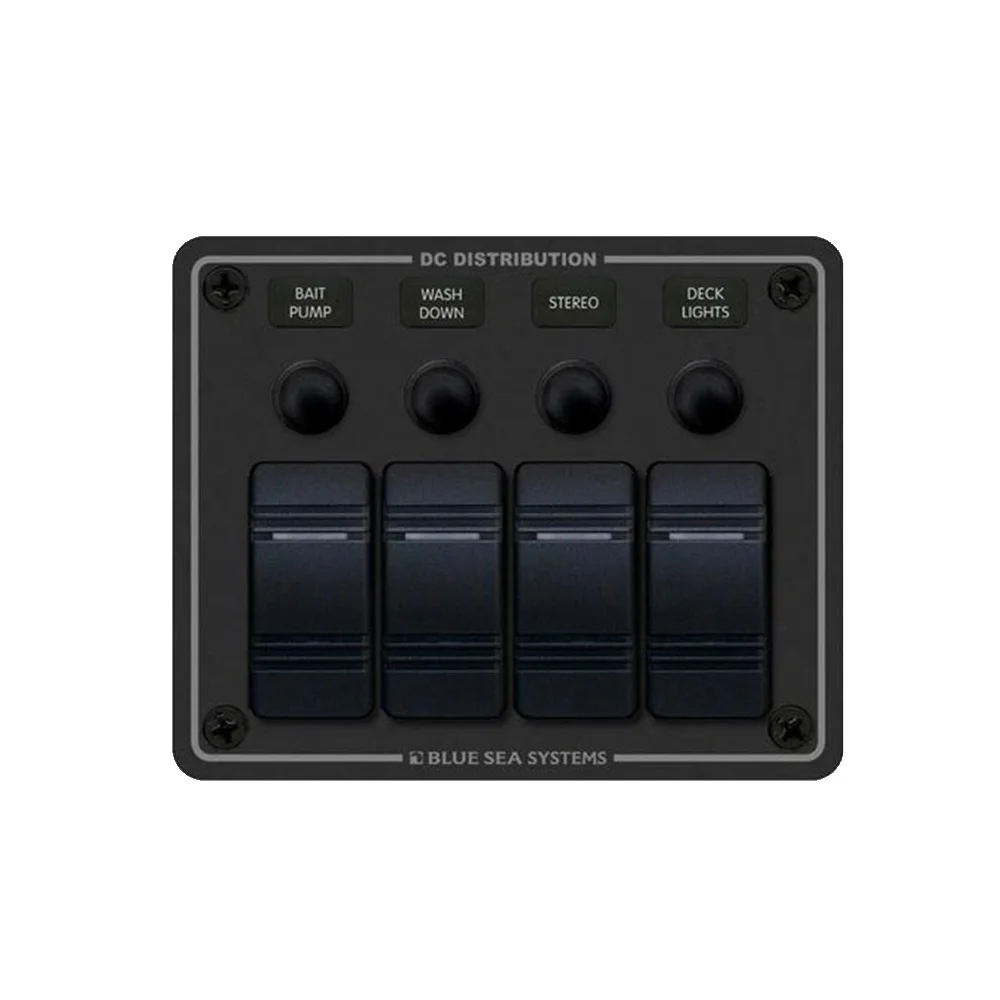

Blue Sea 8372 Water Resistant Circuit Breaker Panel 4 Position-Black

The Bluesea Systems Contura 8372 water resistant 4 position panel, is designed for open cockpit and flybridge applications, using switches to complement the existing controls commonly used on many boats. Its rugged design ideally handles above deck conditions including salt spray, rain, hose washdowns as well as momentary immersions, utilising its water tight mounting gasket. ON indicating LEDs are embedded in all switches. The panel can be used on both 12v and 24v systems, with a maximum operating voltage of 24v DC. Switch rating 20A @ 12v DC and 15a @ 24v DC. Its circuit breaker rating is 15A, and the fuse holder rating is 20A Max (15A fuses included)

• Designed for open cockpit and flybridge applications using switches to complement existing controls commonly used on many boats
• For use on 12 or 24V DC systems
• Water tight mounting gasket
• ON indicating LEDs embedded in all switches
• Maximum operating voltage 24V DC
• Switch rating 20A @ 12V DC and 15A @ 24V DC
• Circuit breaker rating 15A
• Fuse holder rating 20A Max. (15A fuses included)
• 4 circuit panel

Cutout Templates
Instructions

Specifications
Weatherproof	Water Resistant
Positions	4
Nominal Voltage	12V DC 24V DC
Panel Cumulative Rating	45A
Switch Rating	20A @ 12V DC 15A @ 24V DC
Height	4.25in (107.95 mm)
Width	5.25in (133.35 mm)
Depth	3.25in (82.55 mm)
Weight	0.90lb (0.41 kg)
Weight	0.95lb (0.43 kg)
