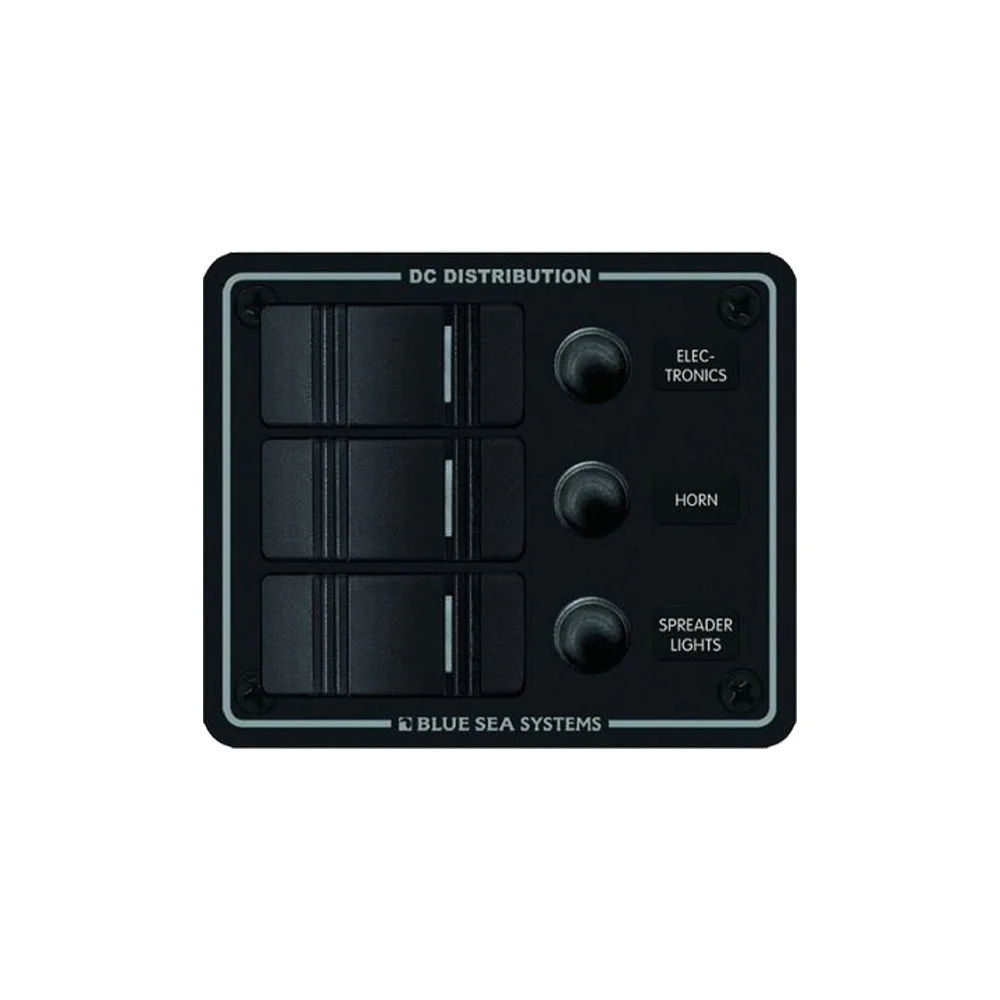

Blue Sea Systems 8374 Contura Water Resistant Circuit Breaker Panel 3 Position-Black

The Bluesea Systems Contura 8374 water resitant 3 position panel, is designed for open cockpit and flybridge applications, using switches to complement the existing controls commonly used on many boats. Its rugged design idelly handles above deck conditions including salt spray, rain, hose washdowns as well as momentary immersions, utilising its water tight mounting gasket. The panel can be used on both 12v and 24v systems, with a maximum operating voltage of 24v DC. Switch rating 20A @ 12v DC and 15a @ 24v DC. Its circuit breaker rating is 15A, and the fuse holder rating is 20A Max (15A fuses included)

• Designed for flybridge and open cockpit applications
• Panel front is rated IP66—Protected against powerful water jets
• Ignition protected—safe for installation aboard gasoline powered boats
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switch
• Watertight mounting gasket
• Push Button Reset-Only circuit breakers with waterproof boots

Cutout Templates
Instructions

Additional information
