£54.99

In Stock

Blue Sea Systems 9004E-BSS Switch Battery e-Series ON/OFF With AFD

Quantity

View Trade Prices
SKU: 002877 Categories: ,

Blue Sea Systems 9004E-BSS Switch Battery e-Series ON/OFF With AFD

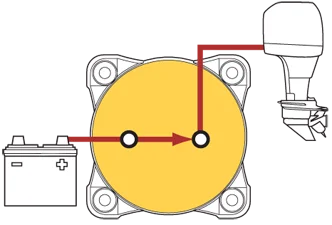

Switches a single battery to a single load group

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

pdf fileInstructions
jpg fileMounting Diagram

Read More...

Description

Switches a single battery to a single load group

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting

pdf fileInstructions
jpg fileMounting Diagram

Specifications
Switch Type  Single Circuit ON-OFF
Color Red
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  Yes
Maximum Voltage 48V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  350A
Intermittent Rating  600A (5 min)
Cranking Rating 30 sec  1200A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4″ (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8″ – 16 (M10)
Weight
