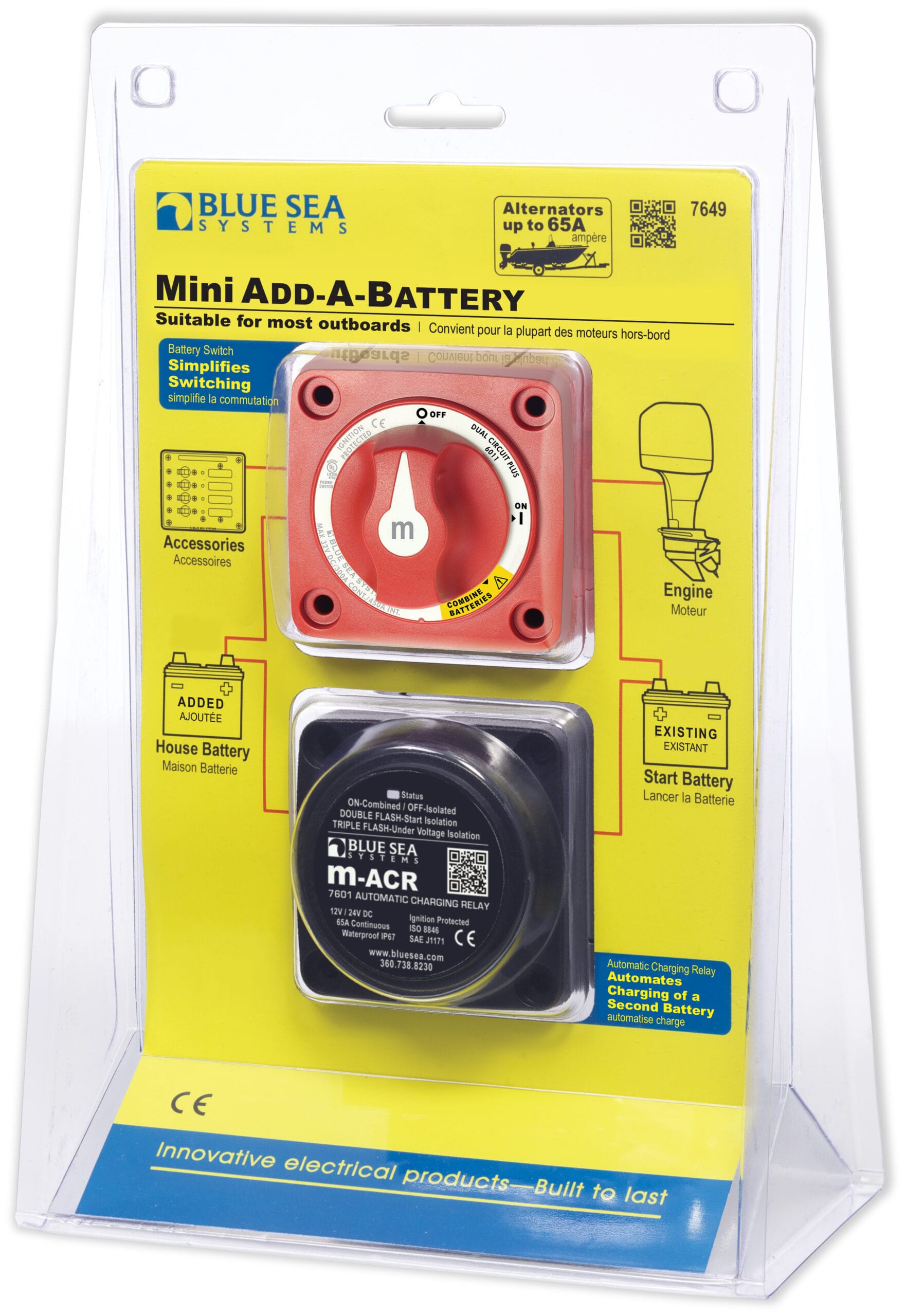

Blue Sea 7649 Mini Add-A-Battery Kit – 65A

The ADD-A-BATTERY is as simple to operate as an ON-OFF switch, yet effectively manages the switching and charging of two batteries from a single charge source

The Add-A-Battery includes a Dual Circuit Plus™ Battery Switch and an Automatic Charging Relay. These components simplify switching and automate charging, so that all you have to do is turn the battery switch ON when you arrive and OFF when you leave.

Dual Circuit Plus™ Battery Switch

• Simplifies switching
• Isolates engine and house circuits
• Combines batteries for emergency starting
• Tin-plated copper studs for maximum conductivity and corrosion resistance

ACR Automatic Charging Relay

• Automatically combines batteries during charging
• Isolates batteries during engine cranking and when not charging
• Shares the charge between two batteries more efficiently than a battery isolator
• Allows efficient dual battery charging without needing regulator adjustment or rewiring

These include a Dual Circuit Plus™ Battery Switch and an Automatic Charging Relay simplifying switching & automate charging, so that you just turn the battery switch ON when you board and OFF when you leave.

Adding a second battery prevents getting stranded with a dead battery by isolating the start battery from the house loads that can quickly discharge a battery. The Add-A-Battery offers a simple way to control switching with the Dual Circuit Plus™ Battery Switch and automatically share a single source of charging between two batteries with the ACR.

The Dual Circuit Plus™ Battery Switch

Simplifies battery switching

Isolates engine and house circuits

Switch combines battery banks for emergency starting

Automatic Charging Relay (with optional start isolation)

Automatically combines battery banks during charging

Isolates battery banks when discharging and when starting engines

Battery: Switch m-Series 8-26011

ACR: m-ACR 8-27601

Check out the links below for further information and specs

Diagnostic Flowchart
Dimension Drawing
Instructions
