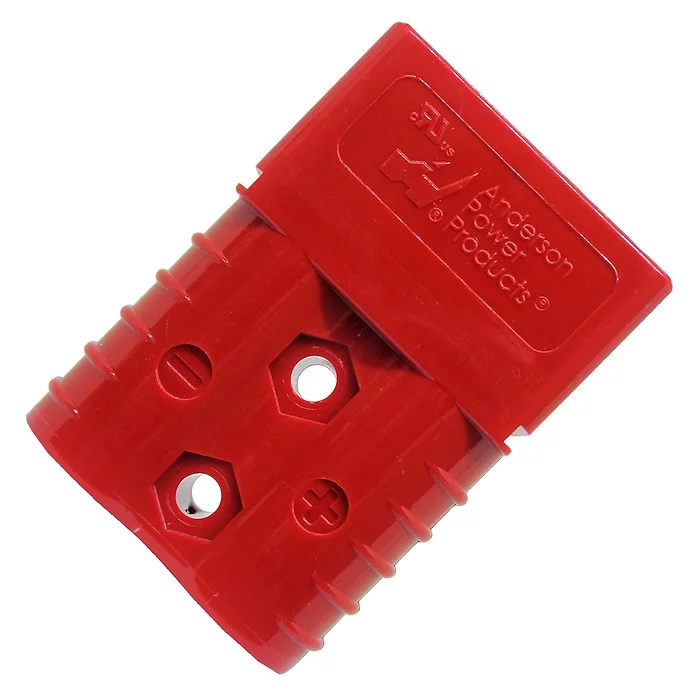

Durite 0-432-20 120A Red High Current Battery Connector

Durite 2-way 120A red battery cable connector for medium to heavy-duty automotive cables and vehicle wiring.

• 120 Amps high current battery connector.
• The red coloured polycarbonate housing is generally used to identify a 24Vdc supply.
• Silver-plated solid copper terminals.
• Pack Quantity: 1 piece.

Additional Information

• The connectors are ‘genderless’ and are connected to each other by inverting one connector.
• They are colour keyed and cannot be mixed or interchanged with other colours.

Used as a heavy-duty battery cable connector, the Durite 120A red connector when reversed, clips into another red connector of the same part number to create a secure connect and disconnect plug for chargers. The unit will stand up to rigorous daily use due to the sturdy and reliable terminal and housing construction.

Typically used as a battery charger connect and battery disconnect plug on electric vehicles, the unit can also be used as a jump lead extension, usually found mounted into a breakdown vehicle front and rear to allow forward or rear jump-starting without accessing the hood or battery station.

A common question regarding this connector is: does the unit require a different partner connector? The answer is no, you would use another connector of the same part number and rotate it 180° (upside down) to create the connection. Positive to Positive and Negative to Negative. You would require two units for a simple battery cable split connector or three if a connection to a charger is required.
