Description
- Halogen-free in compliance with EN 60754-2
- Screw terminals
- -25 +55 °C operating temperature
- EN 60309-1 and EN 60309-2

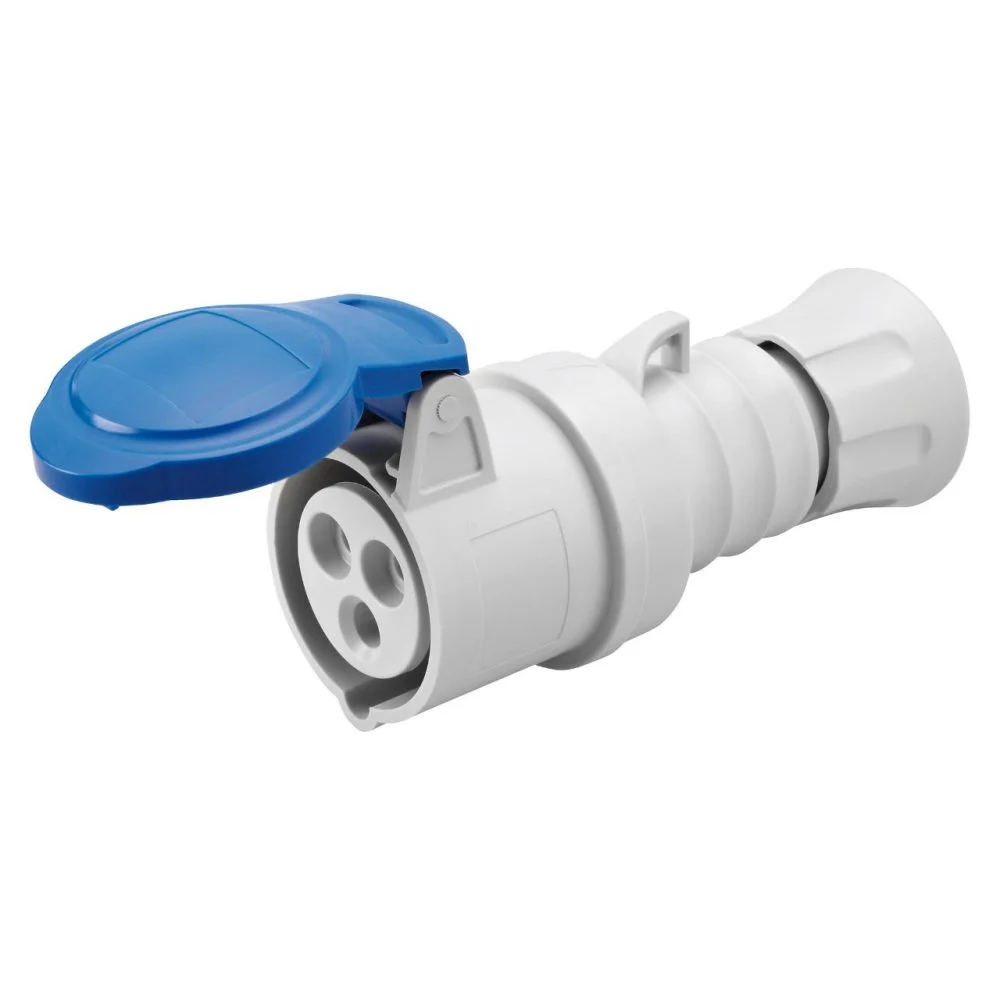

Gewiss Gw62015H 32A 2P+E (3 Pin) 230V Ip44 Connector
- Halogen-free in compliance with EN 60754-2
- Screw terminals
- -25 +55 °C operating temperature
- EN 60309-1 and EN 60309-2
Colour – Blue
Rated current 32A
IP degreeIP44/IP54
No. of poles – 2P+E
Mechanical resistance – IK09
Type – Straight connector
Rated voltage – 200 – 250 V
Frequency – 50/60 Hz
Terminal tightening capacity – 2.5-6mm² flexible cables – 2.5-10mm² rigid cables
Cable clamp tightening capacity – 9.2-19.9 mm
Operating temperature – -25 +55 °C
Type of wiring – With screw
Type of material – Halogen-free in compliance with EN 60754-2
Electrocod – 2210
Glow wire test – 850 °C (active parts) – 650 °C (passive parts)
Total number of operations – > 2000
Permissible overload – 42 A
Breaking capacity at 1.1 Un – 40 A
Insulation resistance – > 10 M?
Thermo-pressure with ball – 125 °C (active parts) – 80 °C (passive parts)
