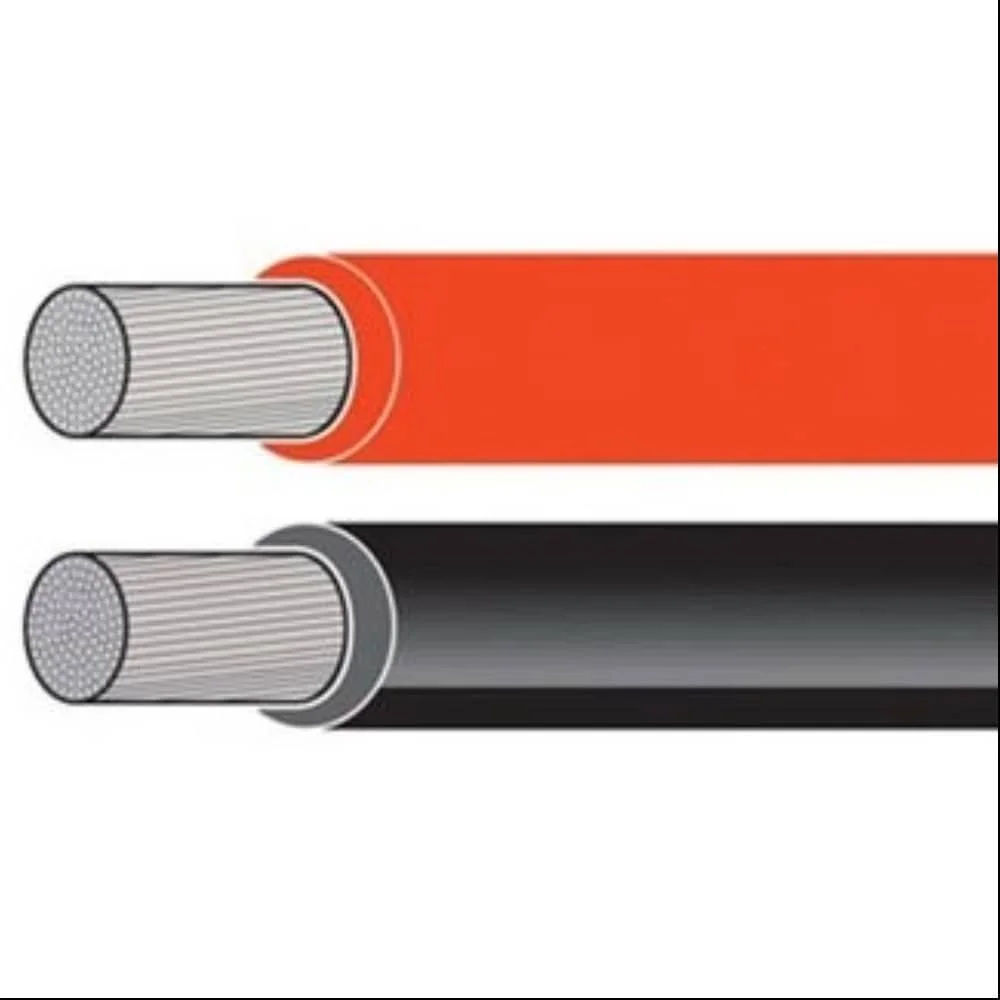

Oceanflex Extra Flexible Tinned Copper PVC Battery Cable in Red – 95mm² 500A

Is suitable for both 12v and 24v systems (maximum 60v) The Oceanflex range of Tinned cables offers excellent resistance to Petrol and Diesel, lubricating oils and diluted acid, as well as offering very good resistance to moisture. Cable is supplied printed with the specification on the insulation. Conductor specification (mm) 84/0.30. Conductor cross section is 70mm². Supplied in Black to the length you require. As with all cable from Automarine, this is manufactured in the UK for your peace of mind and safety.

Oceanflex 95mm² extra flexible PVC marine grade battery cable with tinned copper conductors, making this especially suitable for marine and other harsh environments where corrosion of plain copper can occur. Can also be used as welding cable.

Extremely flexible and easy to route where required.

• Nominal current rating: 500A
• No./size of conductors: 684/0.40mm
• Conductor cross section: 95mm²
• Maximum overall cable diameter: 17.9mm
• Resistance per m at 20°C: 0.00021 Ω
• Conductor material: Tinned copper
• Insulation material: PVC
• Working temperature range: -30°C to +70°C
• Chemical resistance: Petrol, lubricating oils, acids and highly moisture resistant
