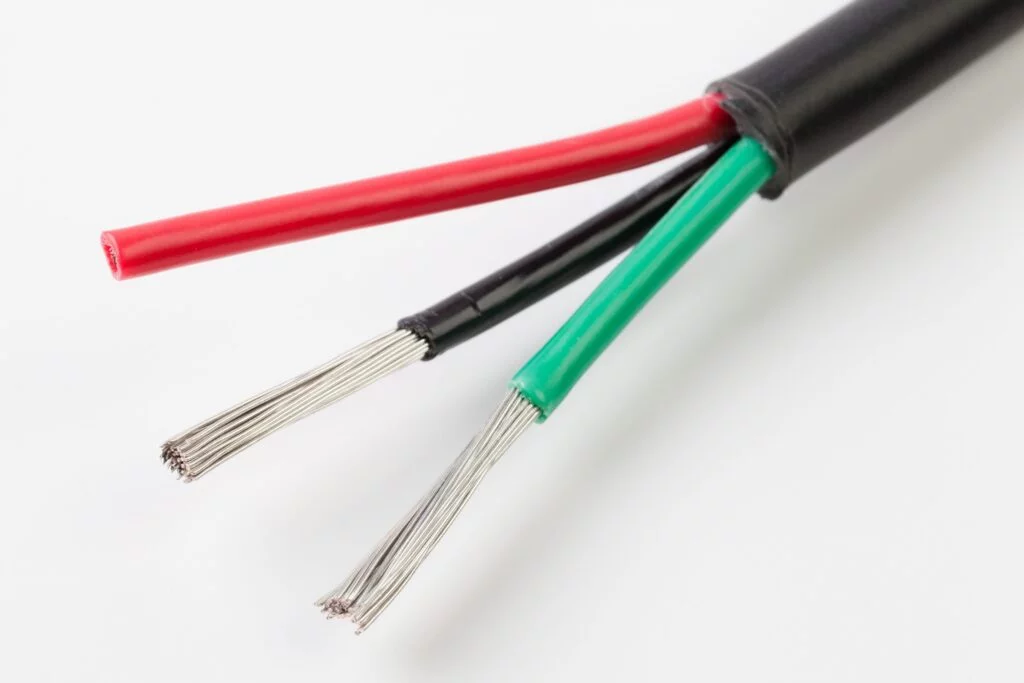

Oceanflex CM03/05 Tinned Cable 3 Core 2.5mm

Tinned copper 3 core cable From the Oceanflex range by Automarine which are manufactured to ISO 6722-1:2011 (class b) 105 degrees C. Tinned Copper Conductors, PVC insulation which saves weight and offers good resistance to abrasion and cut through. Is suitable for both 12v and 24v systems (maximum 60v) The Oceanflex range of Tinned Cables offers excellent resistance to petrol, diesel, lubricating oils and diluted acid, as well as offering very good resistance to moisture. Cable is supplied printed with the specification on the insulation. PVC sheathed up to 70°C. Conductor specification (mm) 3 x 35/0.30. Conductor cross section 3 x 2.5mm² Supplied in Black, to the length you require. As with all cables from Automarine, this is manufactured in the UK for your peace of mind, and safety.

• Cores manufactured to: ISO 6722:2011 (Class B) 105°C
• Voltage rating: Suitable for 12V & 24V systems (60V max.)
• Nominal current rating: 3 x 29A
• No./size of conductors: 3 x 35/0.30mm
• Conductor cross section: 3 x 2.5mm²
• Maximum overall cable diameter: 7.3mm
• Conductor material: Tinned copper
• Core insulation material: PVC (hard grade)
• Core insulation colours: Black, Red
• Sheath insulation material: PVC
• Sheath insulation colour: Black
• Working temperature: -15 to +70°C
