£19.99

Scanstrut DS30-P Cable Seal 9mm-14mm Grey

Quantity

Scanstrut DS30-P Cable Seal 9mm-14mm Grey

Scanstrut DS30-P waterproof deck seal for routing electrical cables. This cable gland is made from UV stable glass filled nylon and has an attractive dome shaped design to provide a strong outer shell. This dome also provides an extra shield from water, although the watertightness of the gland comes from a tapered bung and a closed cell base seal.

This deck seal is easy to install, with no need to remove cable connectors. The gland is supplied with both pre-drilled and blank inner seals and also includes captive nuts to allow easy assembly and reliable repeat installations.

The Scanstrut DS30-P Medium deck seal features a vertical cable entry and is suitable for electrical cables between 9mm and 14mm diameter.

Read More...

Description

Scanstrut DS30-P waterproof deck seal for routing electrical cables. This cable gland is made from UV stable glass filled nylon and has an attractive dome shaped design to provide a strong outer shell. This dome also provides an extra shield from water, although the watertightness of the gland comes from a tapered bung and a closed cell base seal.

This deck seal is easy to install, with no need to remove cable connectors. The gland is supplied with both pre-drilled and blank inner seals and also includes captive nuts to allow easy assembly and reliable repeat installations.

The Scanstrut DS30-P Medium deck seal features a vertical cable entry and is suitable for electrical cables between 9mm and 14mm diameter.

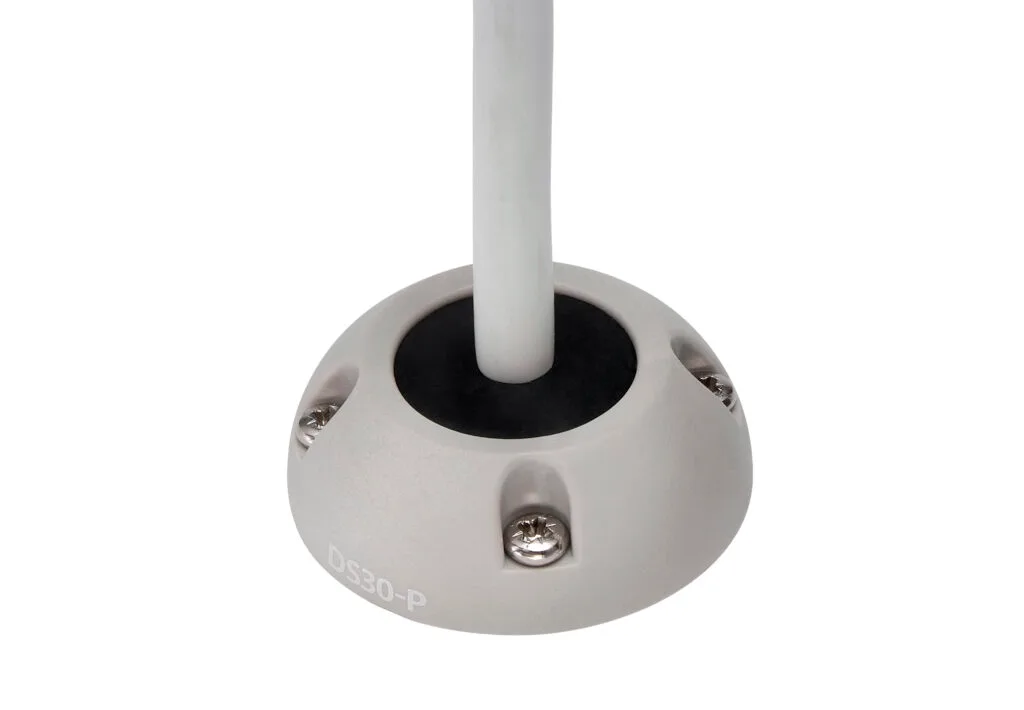

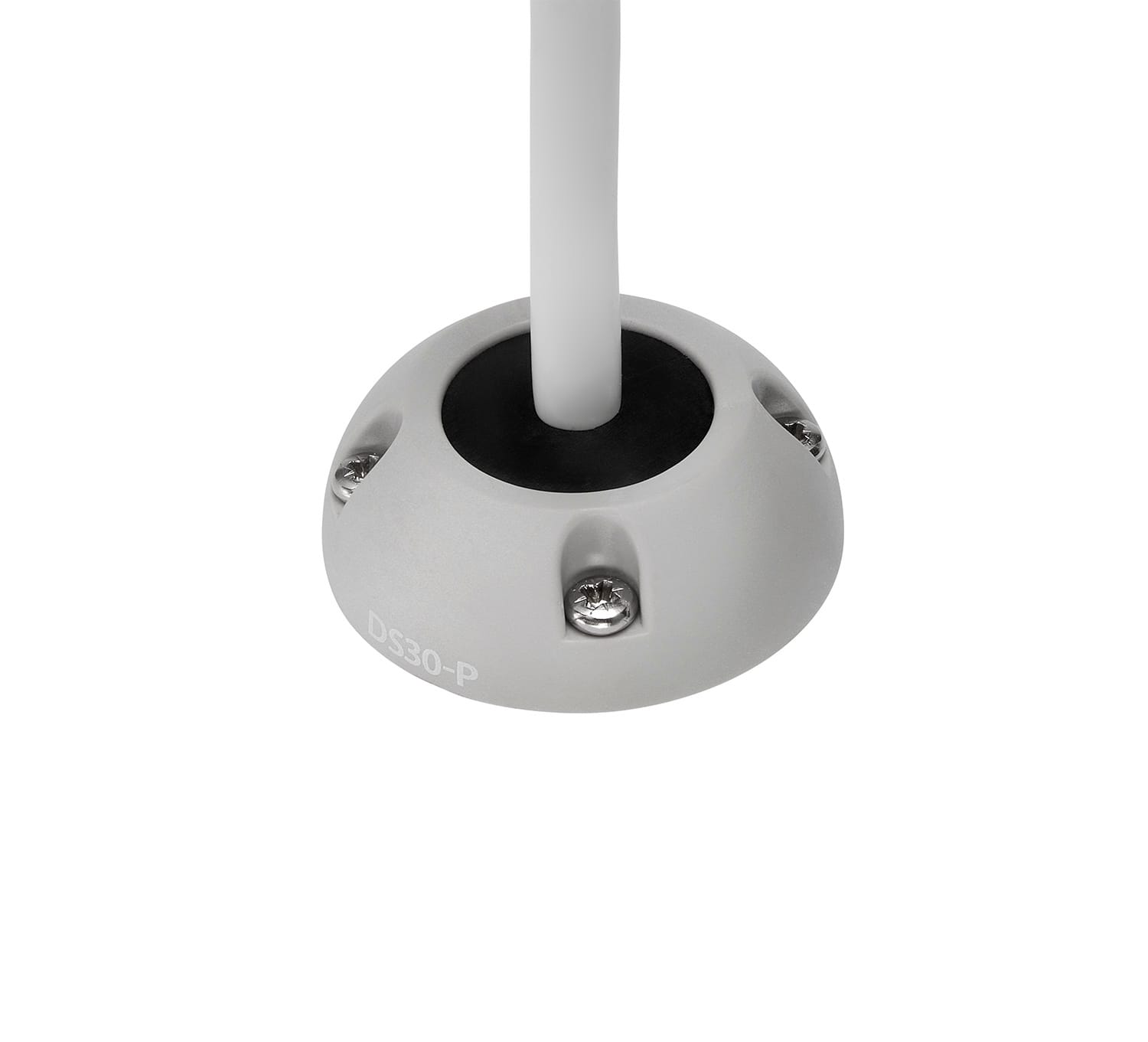

IP68 vertical entry cable seal

For cables from 9-14mm (0.35″-0.55″), connectors up to Ø30mm (1.18″) an aesthetic dome-shaped profile provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.

DS30-P

IP68 vertical entry cable seal

For cables from 9-14mm (0.35″-0.55″), connectors up to Ø30mm (1.18″) an aesthetic dome-shaped profile provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.

Tapered bung forms a watertight seal. All units are supplied with a closed-cell base seal – 100% waterproof. All models have been IP68 tested and approved.

Easy and Reliable Installation

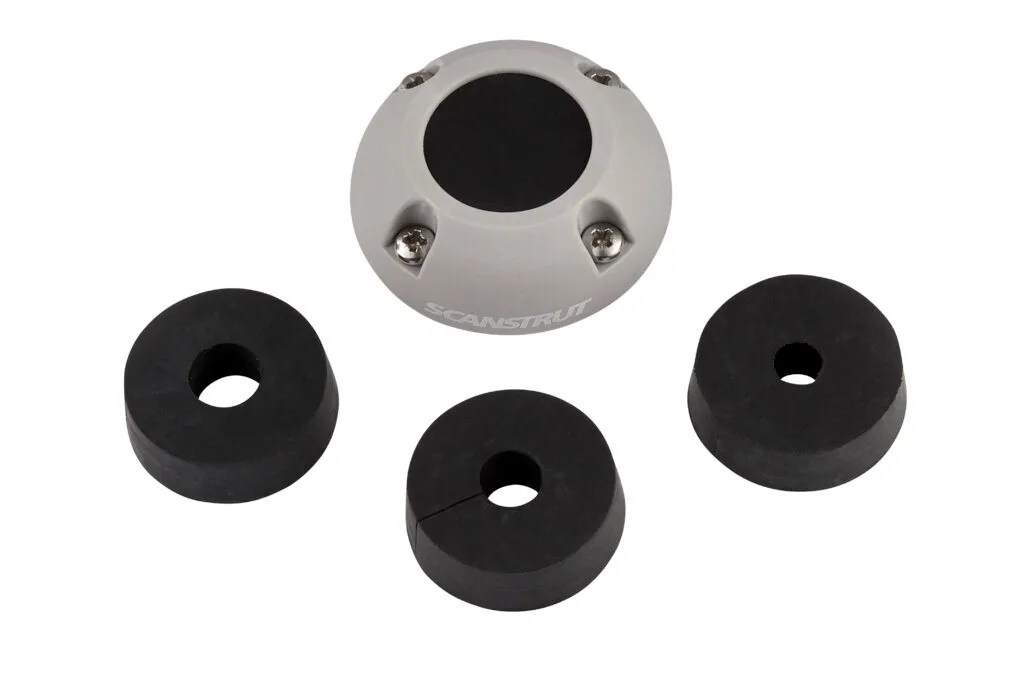

Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.

No Need to Remove Cable Connectors
Split-seal option does not require connector removal during install.

Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield.
