Description
Scanstrut DS6-P waterproof deck seal for routing electrical cables. This cable gland is made from UV stable glass filled nylon and has an attractive dome shaped design to provide a strong outer shell. This dome also provides an extra shield from water, although the watertightness of the gland comes from a tapered bung and a closed cell base seal.
This deck seal is easy to install, with no need to remove cable connectors. The gland is supplied with both pre-drilled and blank inner seals and also includes captive nuts to allow easy assembly and reliable repeat installations.

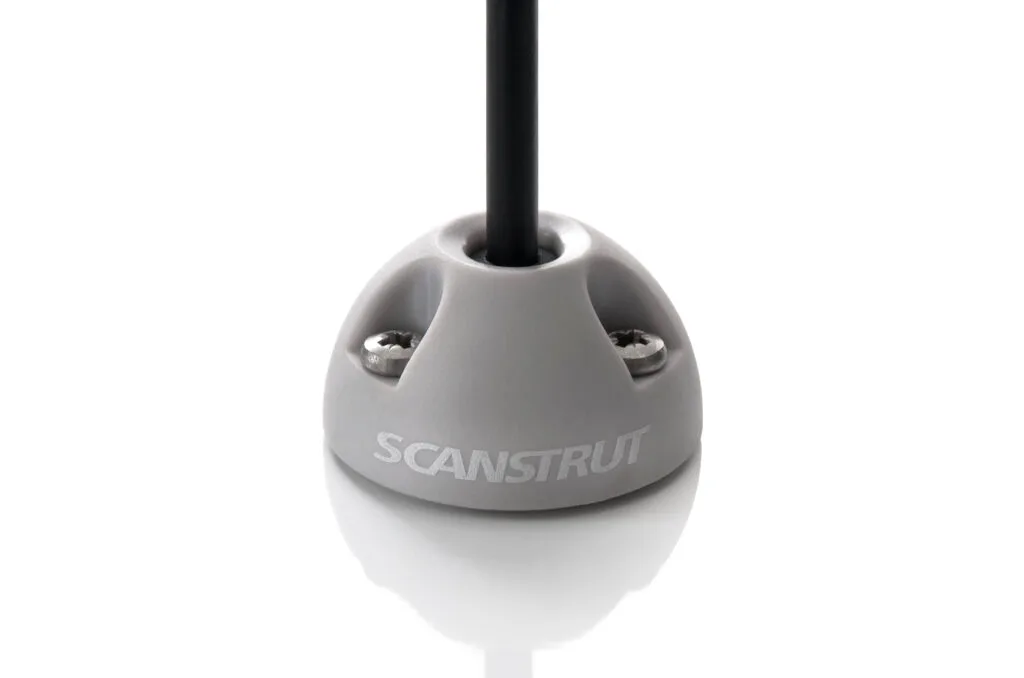

The Scanstrut DS6-P Micro deck seal features a vertical cable entry and is suitable for electrical cables between 2mm and 6mm diameter.
Our most compact vertical entry cable seal
For cables from 2-6mm (0.08″-0.24″), an aesthetic dome-shaped profile provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.
Watertight Installation

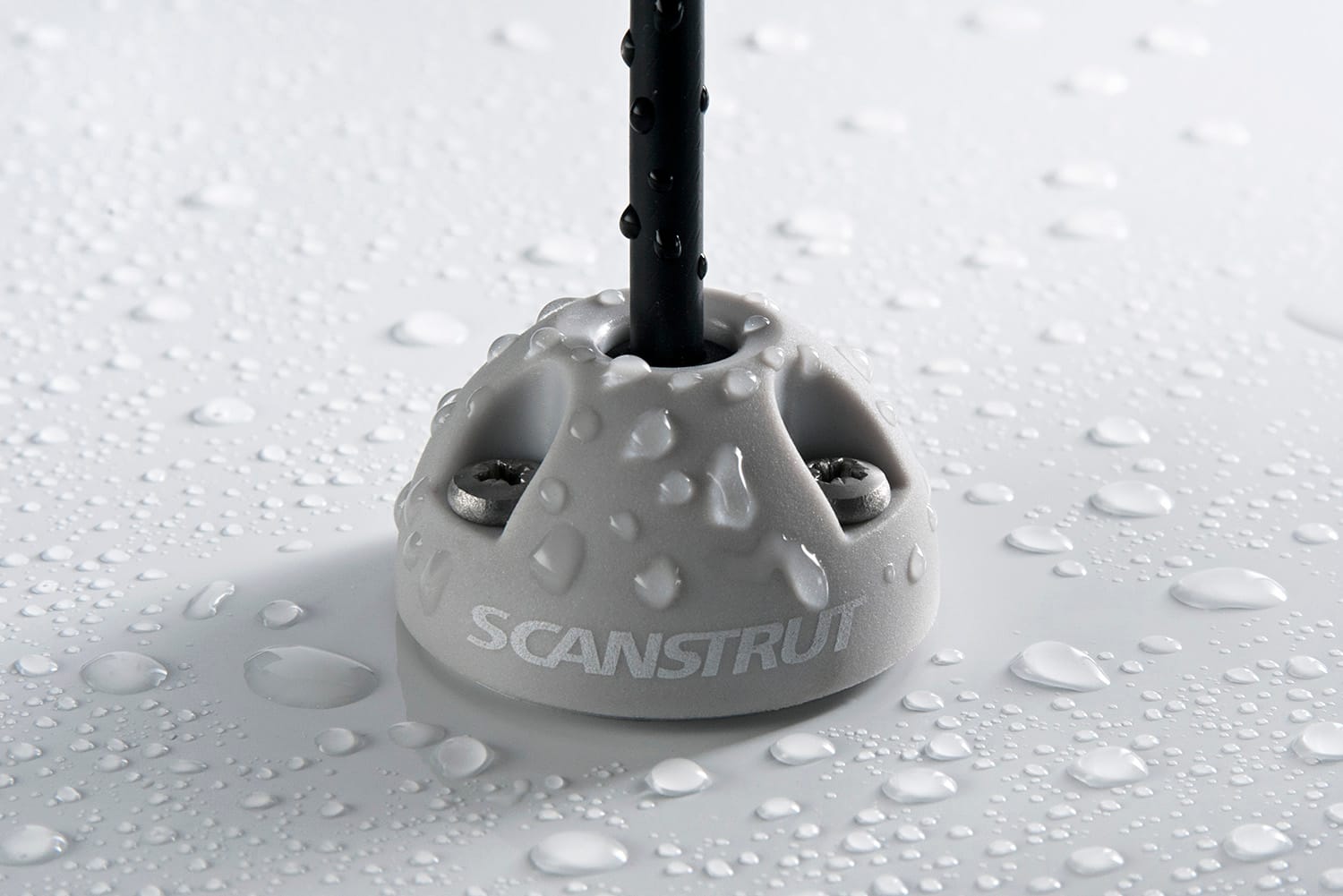

Tapered bung forms a watertight seal. all units are supplied with a closed-cell base seal – 100% waterproof. All models have been IP68 tested and approved.
Easy and Reliable Installation

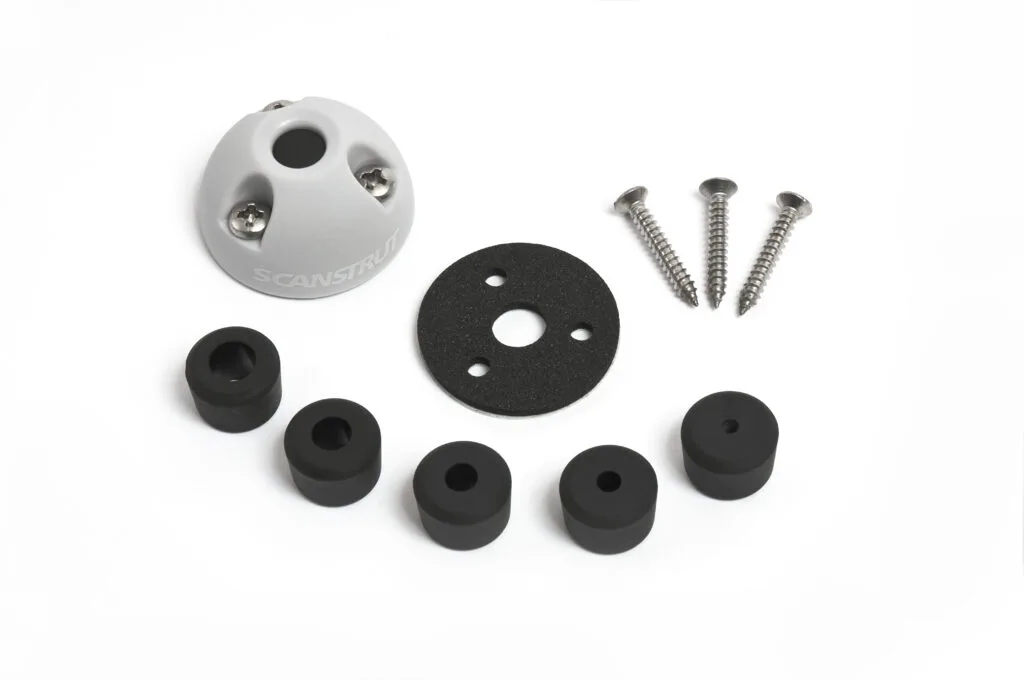

Captive nuts make for easy assembly and also allow reliable repeat installations. Each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
Multi-Functional Dome Shape
The aesthetic dome-shaped profile provides a stronger, impact-resistant design (no sharp edges to hit your foot on!) and outer dome provides additional water shield.
