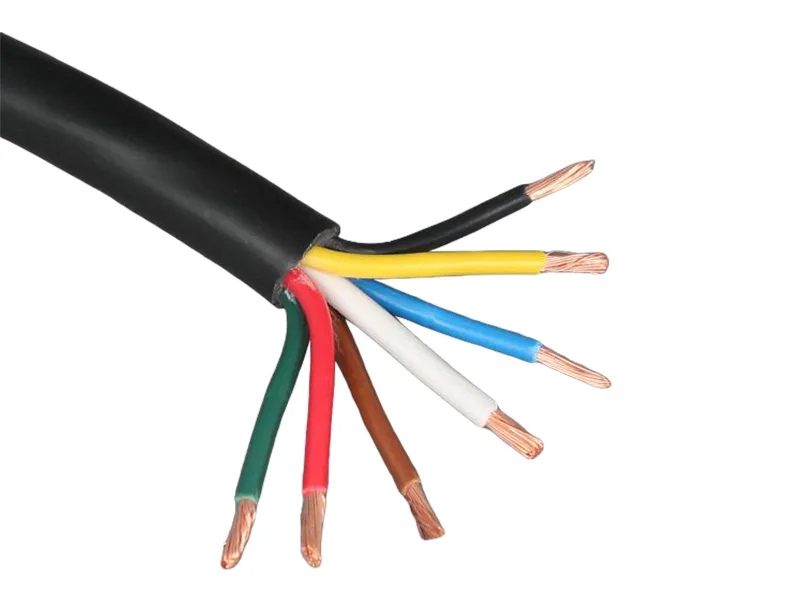

AMC Round 1.0mm 7 Core Thin Wall Cable TW07/04
SKU: 003736
In Stock
Black outer sheath with core colours: Black, Red, Green, Yellow, Brown, White, Blue. Manufactured to ISO 6722-1:2011 (Class B), 105°C heat rating. Plain stranded copper conductors, PVC sheathed, 16.5 Amp current rating, 7.4mm overall diameter.
£1.89
ex VAT £1.58
-
Description
Black outer sheath
Core colours:-Black Red Green Yellow Brown White Blue
Cores manufactured to ISO 6722-1 2011 (Class B)
105 degree heat rating
Plain stranded copper conductors
PVC Sheathed7 x 32/0.20 (1.0mm2) (32 strands, each of 0.20mm thickness)
7 x 1.0mm2 (DIN measurement)
16.5 Amp Current rating @ 12Vdc (max 80Vdc)
7.4mm o/dia. -
