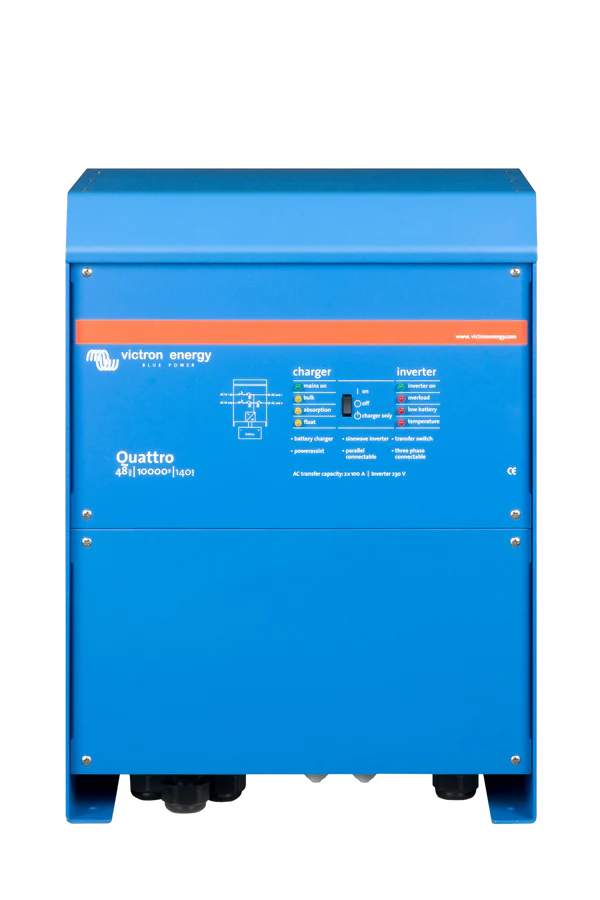

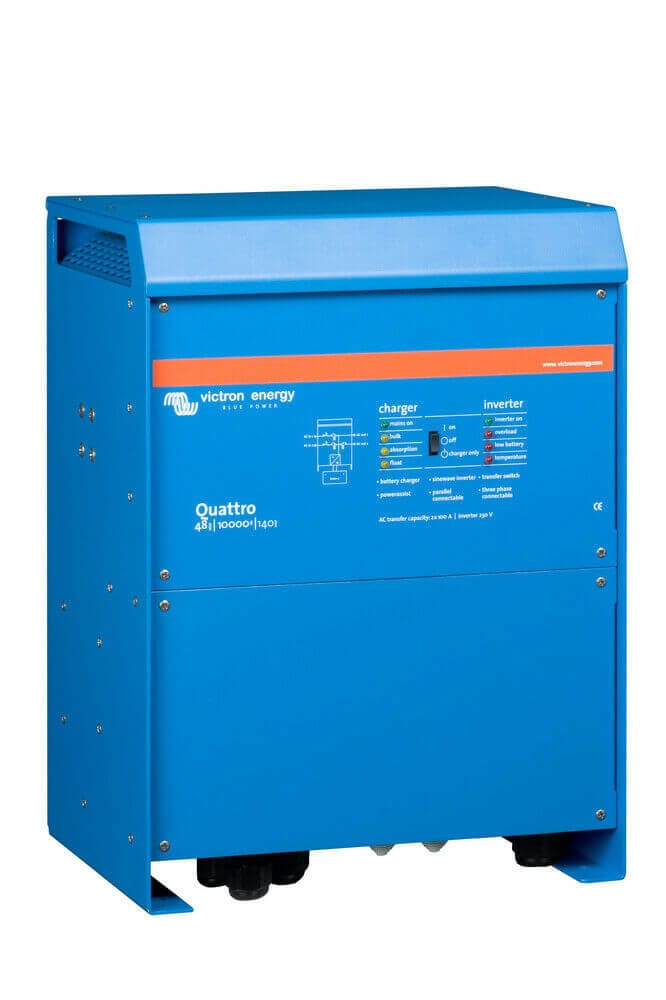

The Quattro 48/10000/140-100 is a sophisticated combination of inverter and charger, offering additional capabilities compared to the MultiPlus. It has dual AC inputs and can automatically connect to the active power source. Its features include a true sine wave inverter, adaptive charging, and hybrid PowerAssist technology, which optimizes energy use. Furthermore, it supports multiple system configurations, including parallel, three-phase, and split-phase operation.
Key Features of the Quattro 48/10000-140-100:
- Dual AC Inputs and Outputs:
The Quattro can connect to two independent AC sources, such as shore power and a generator, or two generators. It automatically switches to the active source without manual intervention. In case of power loss, the Quattro takes over and supplies uninterrupted power to connected loads (less than 20ms transition). A second AC output is available for loads that should not draw from the battery, like air-conditioning or water heaters, and is only active when AC power is present. - Hybrid PowerAssist Technology:
The Quattro prevents overloads on limited AC sources (e.g., generator or shore power). It reduces battery charging when an overload is imminent, and boosts power to the AC source using battery energy when required. This ensures continuous operation without exceeding the available power. - Parallel Operation for Increased Power:
The Quattro can be configured in parallel with up to six units, enabling a much higher power output. It supports both three-phase and split-phase operations, depending on the system requirements. This scalability allows for flexibility in larger installations or applications requiring higher power capacity. - Remote Monitoring and Control:
With the Cerbo GX device, users can monitor and manage the Quattro system both locally via LAN and remotely over the internet using the free Victron Remote Management (VRM) app and web portal. Access is available on multiple devices (phones, tablets, laptops, or PCs). The system can be adjusted remotely, allowing for features like auto-starting backup generators and other system optimizations. Bluetooth connectivity via the VictronConnect app and the GX Touch provides even more direct and immediate control.
This powerful combination of features ensures that the Quattro 48/10000/140-100 provides reliable, flexible, and easily controlled energy management, ideal for complex installations and demanding power requirements.
