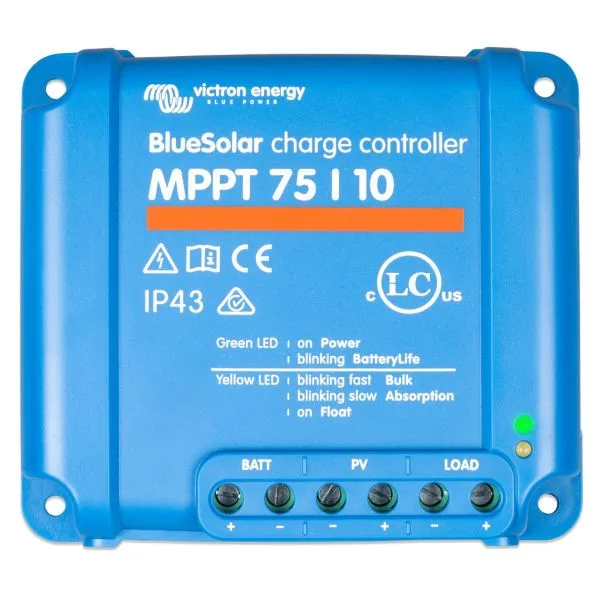

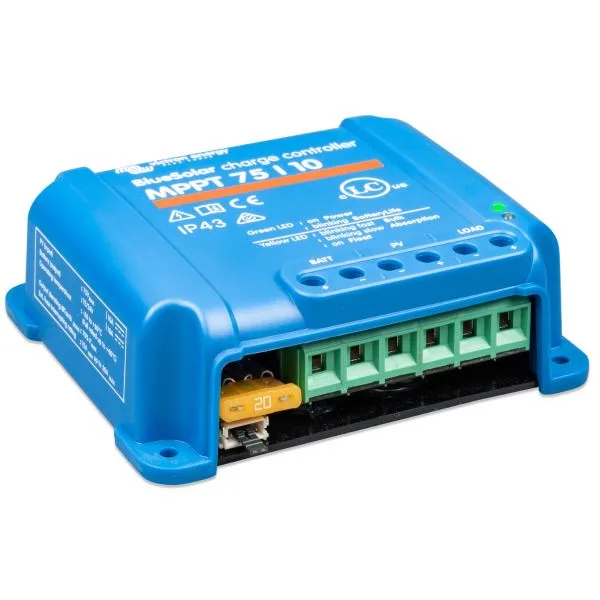

Victron Energy SCC10010050R BlueSolar MPPT 75/10 Solar Charge Controller

SKU: 002990

In Stock

£39.99
ex VAT £33.33

Qty:

Victron Energy BlueSolar MPPT 75/10 Solar Charge Controller

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.

The load output is short circuit proof.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.

Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programming, real-time data and history display options

  • – Color Control GX or other GX devices
  • – A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

Specifications:

Battery voltage (auto select) (auto select) 12/24V
Rated charge current 10A
Nominal PV power, 12V 145W
Nominal PV power, 24V 290W
Max. PV short circuit current 15A
Automatic load disconnect Yes
Max. PV open circuit voltage 75V
Peak efficiency 98%
Self-consumption – load on 12V: 25 mA 24V: 15 mA
Self-consumption – load off 12V: 25 mA 24V: 15 mA
Charge voltage ‘absorption’ 14,4V / 28,8V (adjustable)
Charge voltage ‘float’ 13,8V / 27,6V (adjustable)
Charge algorithm multi-stage adaptive
Temperature compensation -16 mV / °C resp. -32 mV / °C
Max. continuous load current 15A
Low voltage load disconnect 11,1V / 22,2V or 11,8V / 23,6V or Battery Life algorithm
Low voltage load reconnect 13,1V / 26,2V or 14V / 28V or Battery Life algorithm
Protection Output short circuit / Over temperature
Operating temperature -30 to +60°C (full rated output up to 40°C)
Humidity  95%, non-condensing
Data communication port VE.Direct
Colour Blue (RAL 5012)
Power terminals 6 mm² / AWG10
Protection category IP43 (electronic components), IP22 (connection area)
Weight 0,5 kg
Dimensions (h x w x d) 100 x 113 x 40 mm
Safety Standards EN/IEC 62109-1, UL 1741, CSA C22.2
