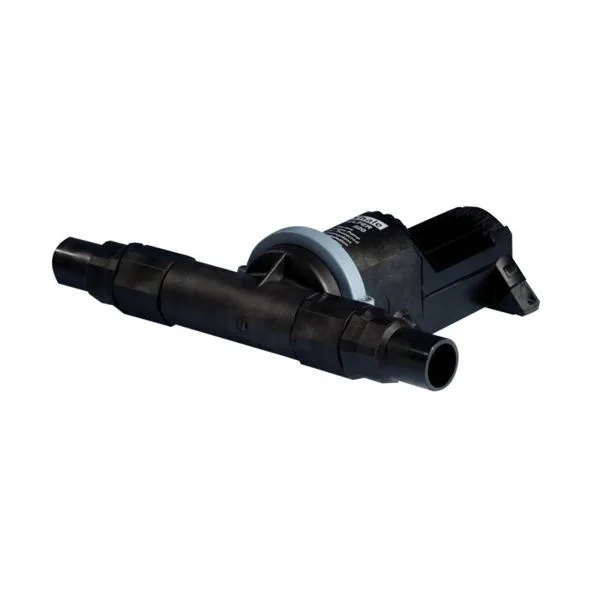

Whale Gulper BP2552B Toilet Waste Water Pump (12V / 18LPM / 38mm Hose)

Whale Gulper Toilet waste water pump BP2552B is particularly designed to handle un-macerated toilet waste, making it ideal as a holding tank pump. The toilet pump features a body constructed from aluminium and glass-filled nylon for a robust housing suitable for the marine environment along with rubber feet designed to absorb vibration. Whale Gulper Toilet pumps are CE marked and is ignition protected to ISO8846.

This diaphragm pump does not contain a filter so will not clog and is easy to maintain and service. The Whale BP2552B pump is also easy to install in confined spaces due to its size, and has a 360° rotating head for versatile connections. The non-choke valves have a large bore diameter to ensure continuous flow of water, and the pump is suitable for dry running without harm to the pump.

Click links below for furthe instructions and specifications

Product Sheet

Installation Sheet

For holding tank electric pump out/discharge.

No clog, no filter waste pump built on more than a

decade of market leading pump technology Pumps

un-macerated toilet waste

Features and Benefits

• Pumps un-macerated toilet waste

• Runs dry without damage

• Up to 18 litres (4.75 US gal) per minute

• Virtually unblockable

• Rotatable inlet and outlet – allows you to install in awkward locations

• Self priming up to 3m (9.8 ft) – mount the pump in the most convenient part of boat

• Pumps a mixture of air and waste

• Easy to maintain

• Ideal for holding tanks and vacuum systems

• Extra large ports 1.1/2″ (38mm) for consistent flow

• Easy release clamp ring to rotate pump head

• High spec protected motor

• Head rotates 360 degrees to best suit your installation

• Non choke valves to pump unmacerated waste – no moving parts to clog

• Rubber mounting feet absorb vibration

Accreditations:

• Ignition protection ISO8846

• CE marked

Specifications:

Model: Gulper Toilet Pump

Weight: 2.12kg (4.75 lbs)

Hose Connections: 38mm (1.1/2″)

Minimum Wire Size: 1.5mm² (16 AWG)

Materials: Pump Body: Aluminium, Glass-filled Nylon, Clamp Ring: Acetal Diaphragm: Santoprene, Valves: Nitrile, Gearwheel: Bronze, Feet: EPDM Fasteners: Stainless Steel, Brass

Service Kits: W-AK1557 – service kit

Materials in contact with fluid: Glass-filled Nylon, Santoprene, Nitrile

Maximum Suction Lift: 3m (10 ft)

Maximum Discharge Head: 3m (10 ft)

Lift/Head Combined: 3m (10 ft)

Tip: Ideal for use in conjunction with Whale’s robust and durable Diverter Valve 1/2″ ports Part No. W-DV5606
