£27.99 Each

In Stock

BLUE SEA ST BLADE COMPACT FUSE BLOCK 4 CIRCUITS 5045 • Provides surface mount protection for ATO/ATC fuses • Single side entry wiring • Ignition protected for use in a gasoline engine compartment • Tin-plated copper buses and fuse clips • Accepts ring or snap fork type terminals • Maximum operating voltage 32V DC • Maximum operating Amperage 30 Amp per circuit • Maximum operating Amperage 100 Amp per block • 4 circuits

Quantity

View Trade Prices
SKU: 001532 Categories: , , Tags: , ,

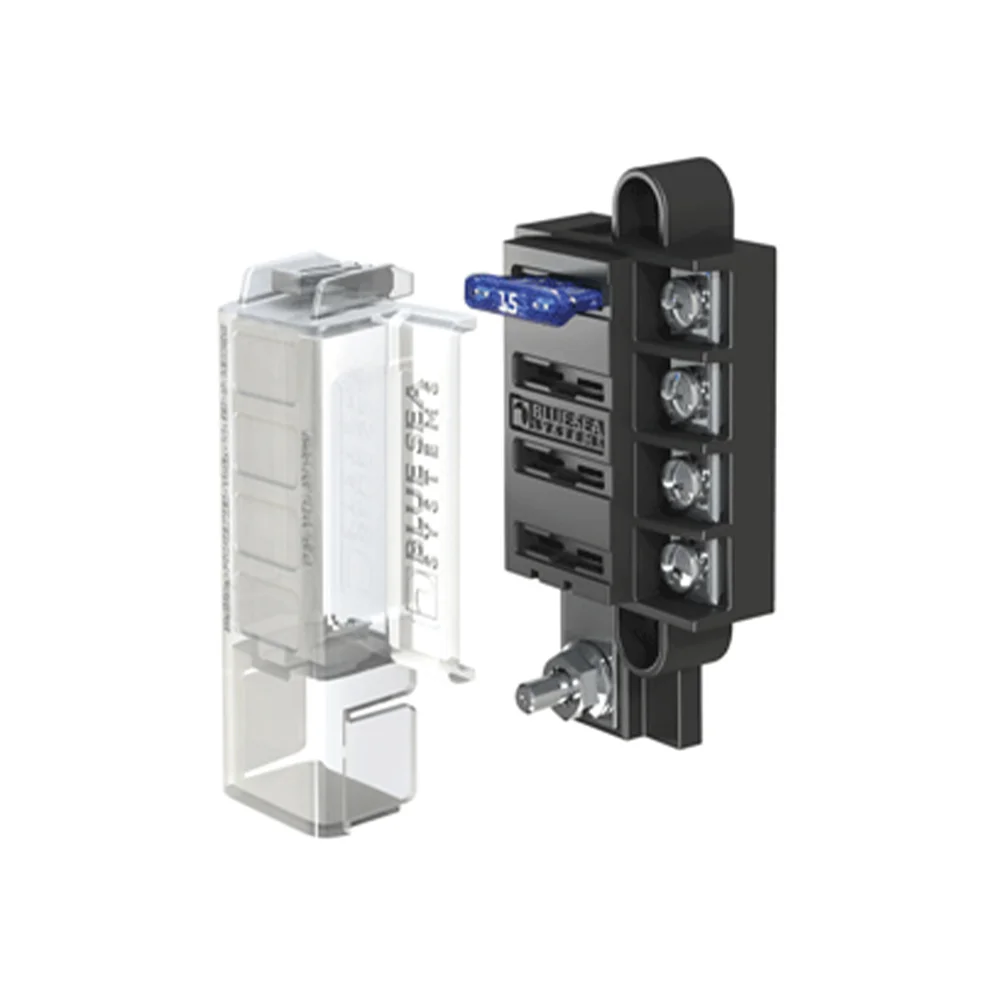

Blue Sea Systems 5045 IP66 Compact Fuse Block 4 Circuit

Bluesea Systems ST Blade Compact Fuse Block 4 circuit. Provides surface mount protection for ATO/ATC fuses. Has a single side entry wiring solution. The ignition is protected for use in a gasoline engine compartment. It is ingress protected to IP66, for protection against powerful water jets, and ignition protected to ISO 8846, SAEJ1171 when the cover is secure. The block has Tin-plated copper buses and fuse clips, and has a maximum operating voltage of 32a DC, maximimum operating Amperage 30 Amp per circuit, maximum operating Amperage 100 Amp per block. Will accept both ring or snap type terminals.

png fileWiring Diagram

pdf fileDimensioned Drawing

pdf fileSale Sheet

Read More...

Description

Bluesea Systems ST Blade Compact Fuse Block 4 circuit. Provides surface mount protection for ATO/ATC fuses. Has a single side entry wiring solution. The ignition is protected for use in a gasoline engine compartment. It is ingress protected to IP66, for protection against powerful water jets, and ignition protected to ISO 8846, SAEJ1171 when the cover is secure. The block has Tin-plated copper buses and fuse clips, and has a maximum operating voltage of 32a DC, maximimum operating Amperage 30 Amp per circuit, maximum operating Amperage 100 Amp per block. Will accept both ring or snap type terminals.

png fileWiring Diagram

pdf fileDimensioned Drawing

pdf fileSale Sheet

Additional information

Brand

Blue Sea

ST Blade Compact Fuse Blocks – 4 Circuits

5045

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

  • Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Single side design allows wire entry from one side to minimize footprint
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Includes 4 write-on circuit labels
  • Fuses sold separately

https://www.bluesea.com/products/5045/ST_Blade_Compact_Fuse_Blocks_-_4_Circuits
