£1.95 Each

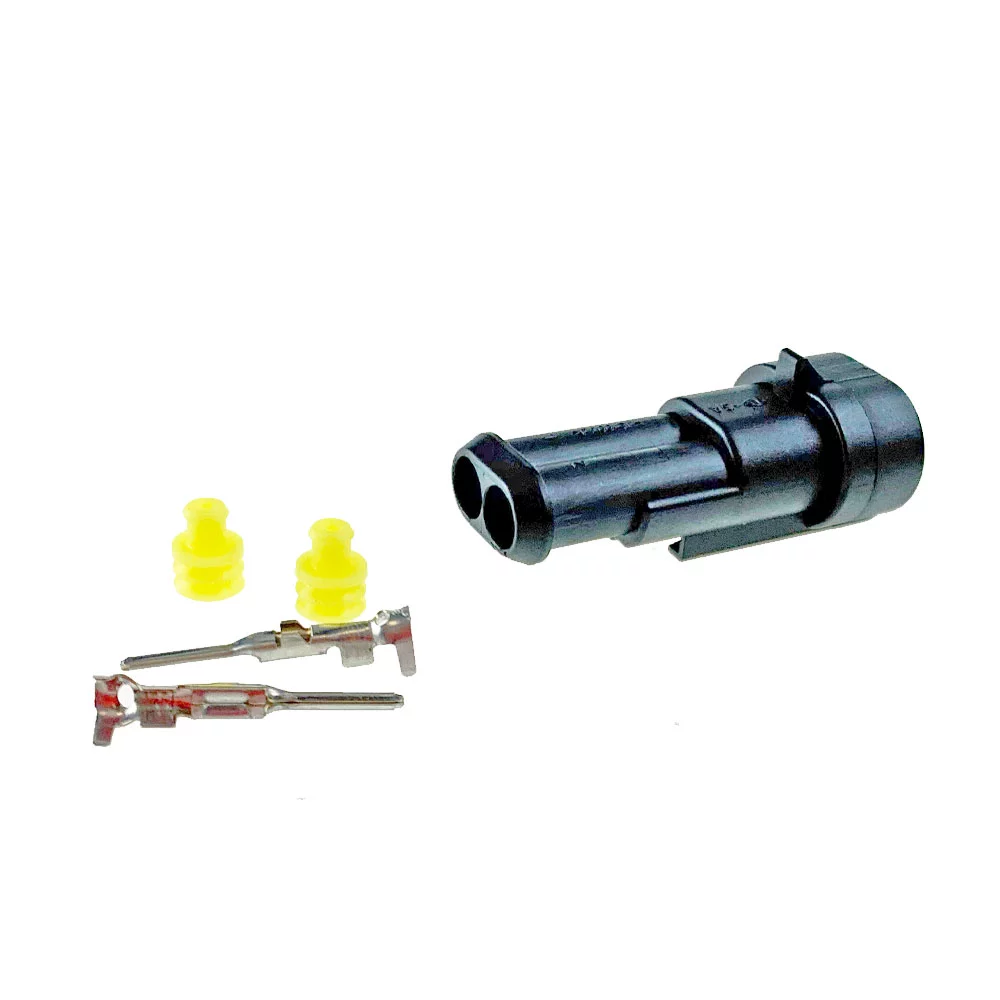

SS2M SUPERSEAL CONNECTOR WATERPROOF JOINT 2 WAY MALE • Compact high-quality waterproof joints • Suitable for cable sizes 0.5mm sq to 1.5mm sq • Water proof to IP67 • 2 way male

Quantity

SS2M Superseal Connector 2 Way Male Waterproof Connector

The Superseal cable connector has been specifically designed to meet the safety and reliability needs required in electrical connections. The Superseal fulfils all the requirements prescribed by various automotive and industrial standards, making it suitable for marine use as well as automotive, agricultural and machinery applications. Superseal comprises a housing as well as terminals and seals.

The Superseal features a glass filled polyamide housing and lock and includes silicone rubber seals for wire entry. It is resistant to ozone, salts, gasoline, diesel, brake fluid detergents, anti-freeze coolant, transmission gear lubricant, motor oil and other harmful materials, as well as being waterproof to IP 67. The design features a secondary lock which ensures complete insertion of the contact and prevents the housing slipping out of the connector. The connector also includes a device which allows it to be safely and easily fastened to a panel to secure in place.

Superseal will allow for wire entry between 0.5 – 1.5mm² (20 – 16 AWG) with a maximum of 14 amps per cable. The seal shapes make cable insertion into the cavity very easy and a collar in the crimping area provides excellent strain relief on the terminals. The connector features lanceless contacts and a double contact spring at the contact receptacle to ensure high contact force with low insertion force.

Read More...

Description

The Superseal cable connector has been specifically designed to meet the safety and reliability needs required in electrical connections. The Superseal fulfils all the requirements prescribed by various automotive and industrial standards, making it suitable for marine use as well as automotive, agricultural and machinery applications. Superseal comprises a housing as well as terminals and seals.

The Superseal features a glass filled polyamide housing and lock and includes silicone rubber seals for wire entry. It is resistant to ozone, salts, gasoline, diesel, brake fluid detergents, anti-freeze coolant, transmission gear lubricant, motor oil and other harmful materials, as well as being waterproof to IP 67. The design features a secondary lock which ensures complete insertion of the contact and prevents the housing slipping out of the connector. The connector also includes a device which allows it to be safely and easily fastened to a panel to secure in place.

Superseal will allow for wire entry between 0.5 – 1.5mm² (20 – 16 AWG) with a maximum of 14 amps per cable. The seal shapes make cable insertion into the cavity very easy and a collar in the crimping area provides excellent strain relief on the terminals. The connector features lanceless contacts and a double contact spring at the contact receptacle to ensure high contact force with low insertion force.

Additional information

Brand

Automarine

Height Description 19mm (0.75″)
Material Glass Filled Polyamide Housing & Lock, Silicone Rubber Seals
Temperature Range -40°C to +125°C
Voltage Description Dielectric Withstanding Voltage: 1500 Vrms
Width 15.3mm
Brand AMC
Number of Superseal Positions 2
Superseal Plug Housing Male
Insulation Resistance min. 200 ohms
Wire Size 0.5 – 1.5mm² (20 – 16 AWG)
Depth 28mm
